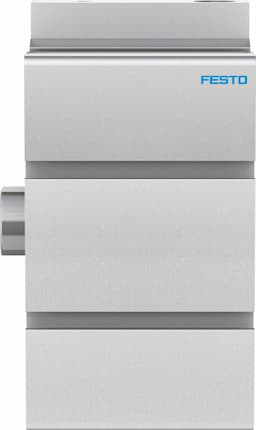

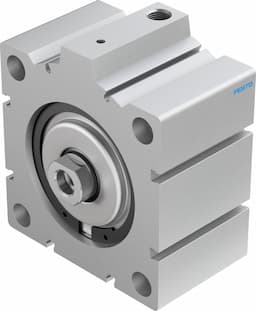

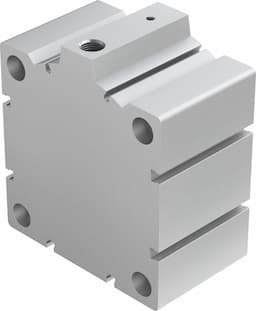

Festo AEVC-100-10-I-P-A Short-Stroke Cylinder

Selling Points

1Precision Control: Offers precise control with a 10mm stroke and 100mm piston diameter.
2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation.
3Versatile Mounting: Can be mounted via through-hole or with accessories, providing flexibility in installation.
4Robust Construction: Made from RoHS-compliant materials, including wrought aluminum alloy anodized housing and high-alloy steel piston rod.
5Compressed Air Operation: Designed for operation with compressed air to ISO 8573-1:2010 [7:4:4], ensuring reliable performance in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	100 mm
Spring resetting force with piston rod in retracted position	140N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991729
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	4503N	Moving mass	546g
Product weight	2000g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188324
