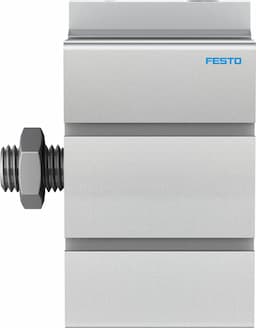

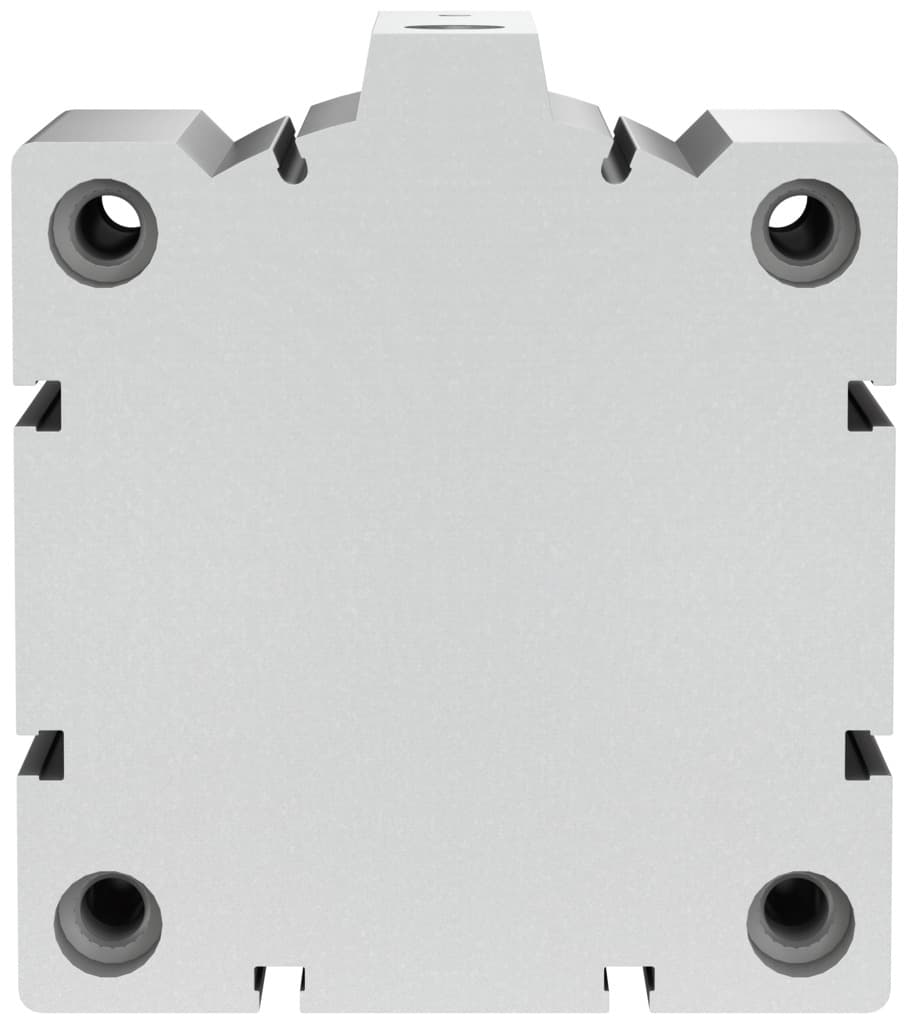

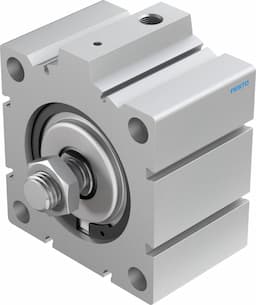

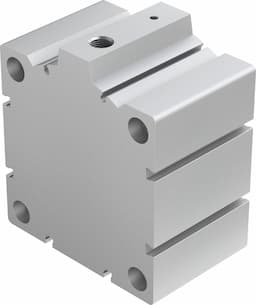

Festo AEVC-100-25-A-P Short Stroke Cylinder - High-Quality Pneumatic Solution

Selling Points

1High-Quality Construction: Made from RoHS-compliant wrought aluminum alloy with anodized finish.
2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
3Wide Operating Pressure Range: Compatible with operating pressures from 0.1 to 1 MPa (1 to 10 bar).
4Low Corrosion Stress: Meets corrosion resistance class CRC 1, ensuring durability in various environments.
5Compact Design: Suitable for various mounting options, including through-hole and accessory mounting.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	100 mm
Spring resetting force with piston rod in retracted position	140N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	4495N	Moving mass	739g
Product weight	2405g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188331

Specifications may be subject to change without notice
