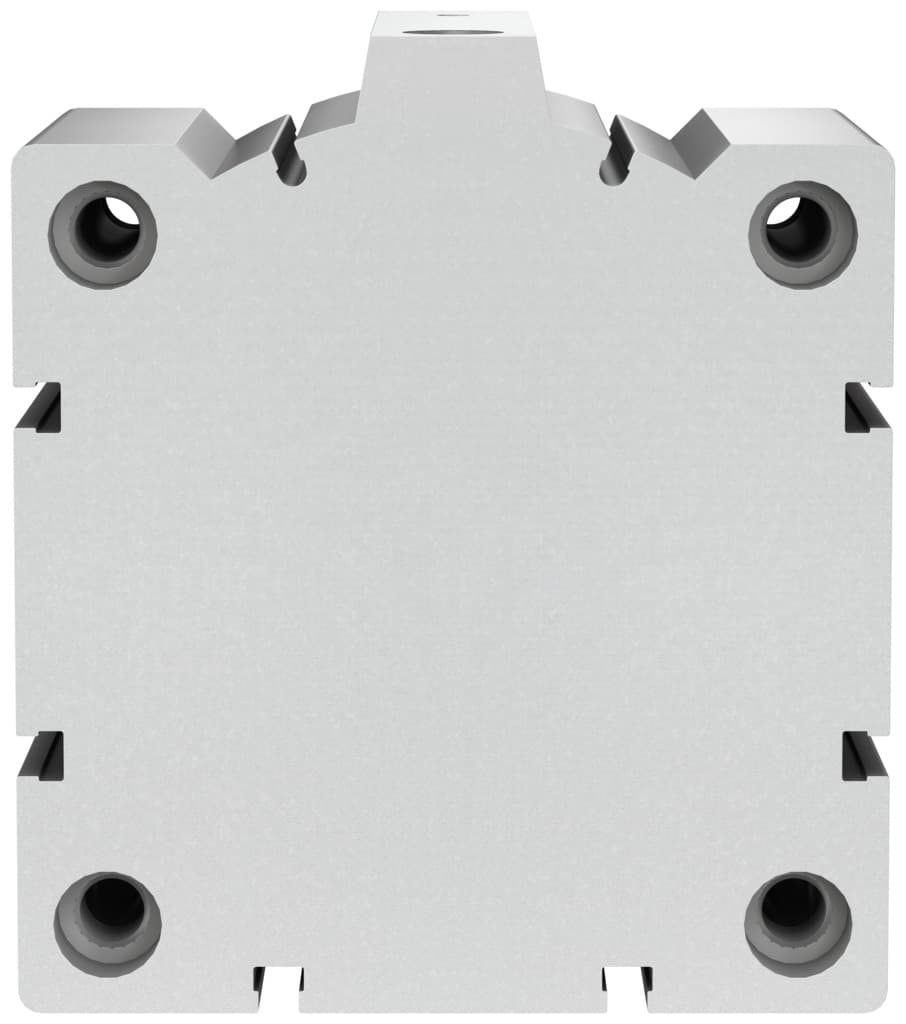

Product Model
aevc-100-25-i-p-a
Selling Points
- 1High-Performance Pneumatic Solution: Designed for precise applications with elastic cushioning and robust construction.
- 2Compact Design: 25 mm stroke length and 100 mm piston diameter for efficient use in tight spaces.
- 3Robust Spring Return Force: 140 N spring return force ensures reliable operation based on ISO 6431 standards.
- 4Versatile Mounting Options: Available with through-hole or accessory mounting options for flexible installation.
- 5Compliant with Industry Standards: Meets VDMA 24562 hole pattern and ISO 8573-1:2010 operating medium requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 100 mm |
Spring resetting force with piston rod in retracted position | 140N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991729 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 4503N | Moving mass | 604g |
Product weight | 2250g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188325 |
Specifications may be subject to change without notice
