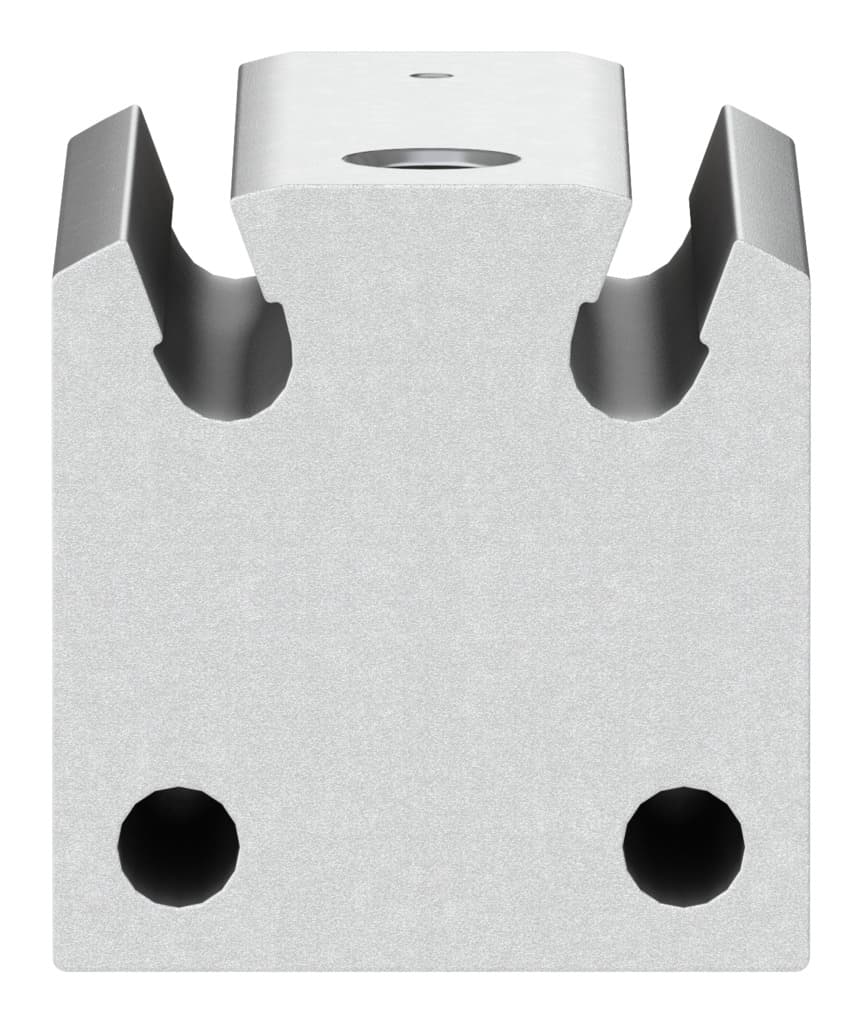

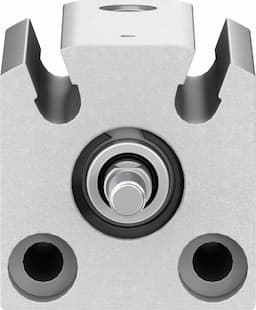

Festo AEVC-10-10-A-P-A Short Stroke Cylinder

Selling Points

1The Festo AEVC-10-10-A-P-A short stroke cylinder is designed for proximity sensing, ensuring precise positioning in your automation applications.
2With a piston diameter of 10 mm and a stroke length of 10 mm, this cylinder offers compact and efficient operation.
3The cylinder features flexible cushioning rings/plates at both ends for smooth operation and reduced wear.
4It is compatible with various mounting options, including through-holes and accessories, providing flexibility in your setup.
5The AEVC-10-10-A-P-A is constructed from high-quality materials, including anodized aluminum alloy for the housing and high-alloy steel for the piston rod, ensuring durability and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	10 mm
Spring resetting force with piston rod in retracted position	3N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	41N
Moving mass	3.5g	Product weight	26g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188073

Specifications may be subject to change without notice
