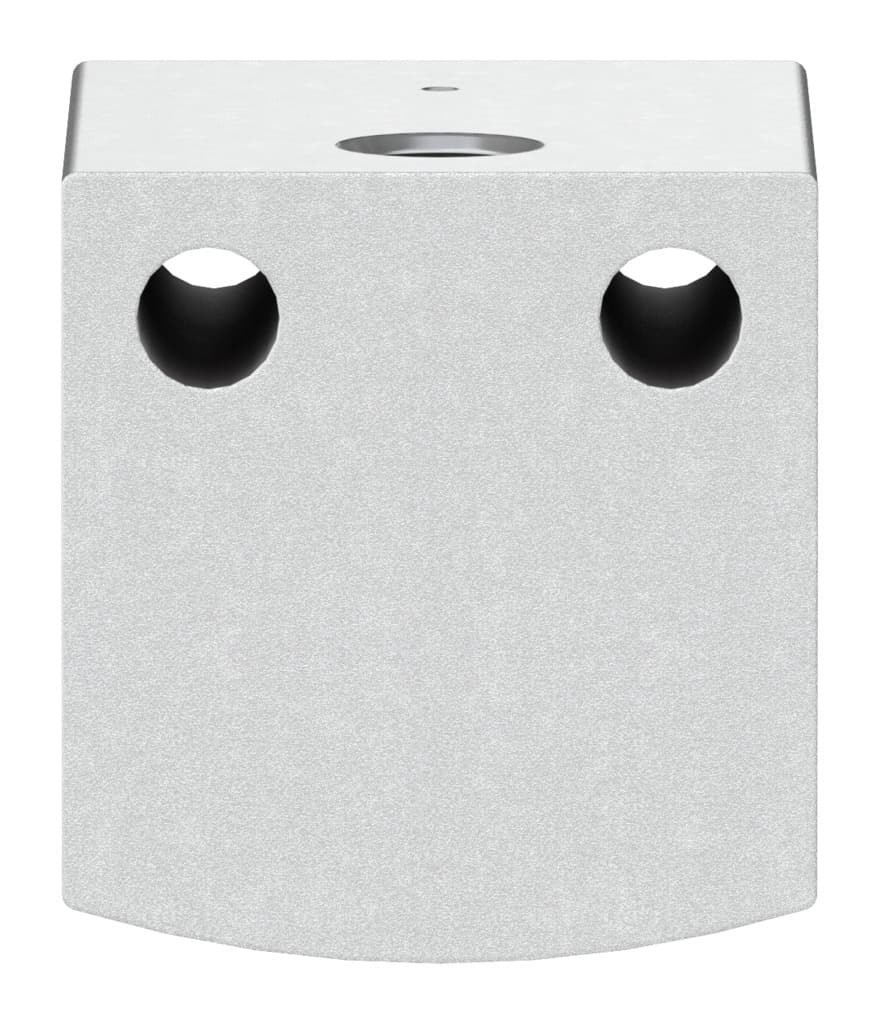

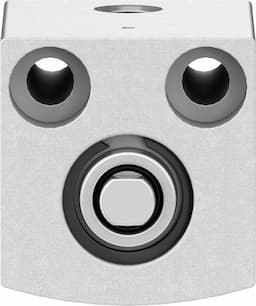

Festo AEVC-10-10-P Short-Stroke Cylinder - High-Quality Pneumatic Solutions

Selling Points

1The Festo AEVC-10-10-P short-stroke cylinder is engineered for precise and reliable operation, ensuring consistent performance in various pneumatic applications.
2With a stroke length of 10 mm, this cylinder offers a compact design that fits seamlessly into tight spaces, making it ideal for space-constrained environments.
3Equipped with elastic cushioning rings/pads at both ends, the AEVC-10-10-P provides smooth operation and reduces wear and tear on the cylinder.
4Available for mounting via through-hole or accessories, the AEVC-10-10-P offers flexibility in installation, allowing for easy integration into different systems.
5Classified as CRC 1, the AEVC-10-10-P exhibits low corrosion stress, ensuring durability and longevity in various operating conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	10 mm
Spring resetting force with piston rod in retracted position	3N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	21.75psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	41N
Moving mass	2.6g	Product weight	21g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188071

Specifications may be subject to change without notice
