Product Model
aevc-10-5-a-p

Selling Points

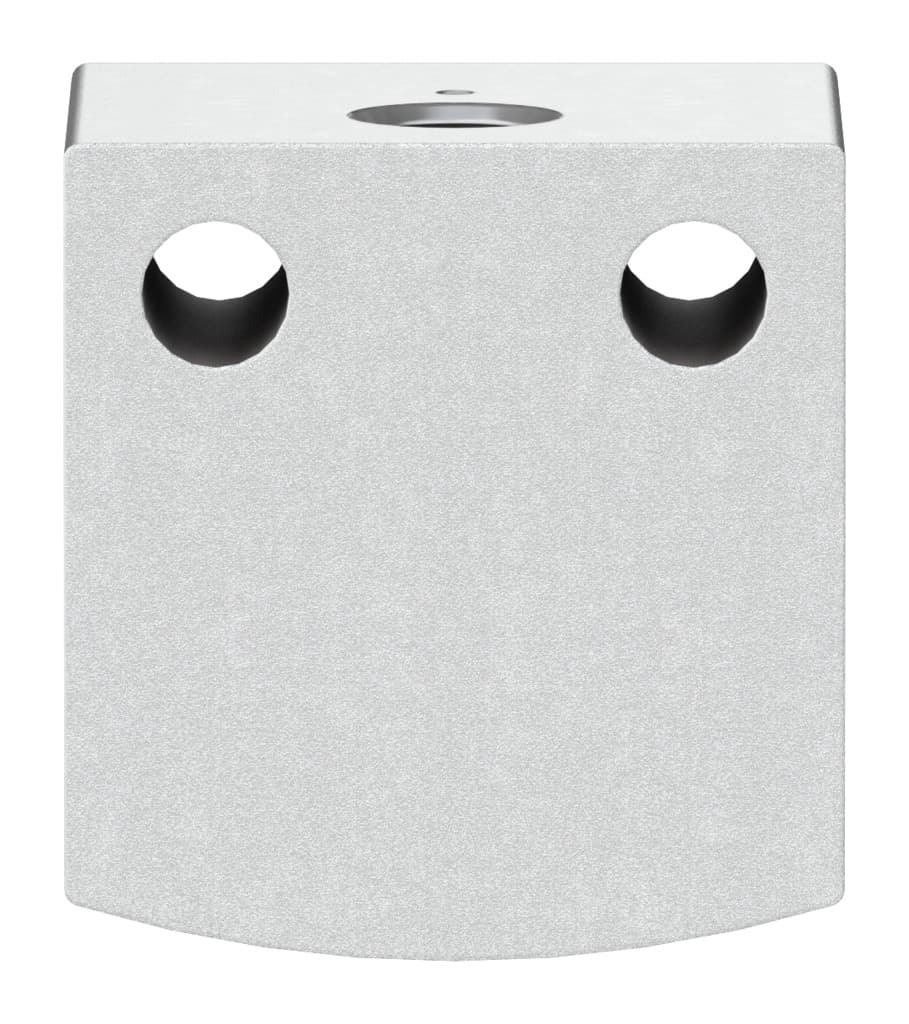

- 1The Festo AEVC-10-5-A-P short-stroke cylinder is designed for precise and efficient motion control in industrial automation applications. Its compact design and standardized dimensions make it easy to integrate into various systems.
- 2This cylinder features a robust construction and high-quality materials, ensuring reliable performance and long service life. It is suitable for a wide range of handling tasks in manufacturing environments.
- 3The AEVC-10-5-A-P cylinder is part of Festo's extensive range of pneumatic components, offering standardized interfaces and easy connectivity options. It simplifies the integration process and reduces setup time.
- 4With its short-stroke design, the AEVC-10-5-A-P cylinder is perfect for applications requiring precise movement over a short distance. It provides high accuracy and control, making it ideal for tasks like assembly and packaging.
- 5Festo's commitment to quality and innovation ensures that the AEVC-10-5-A-P cylinder meets the highest industry standards. It is backed by comprehensive technical support and documentation, making it a reliable choice for industrial automation projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991730 | Operating pressure | 21.75psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 43N |
Moving mass | 2g | Product weight | 16g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188074 |
Specifications may be subject to change without notice
