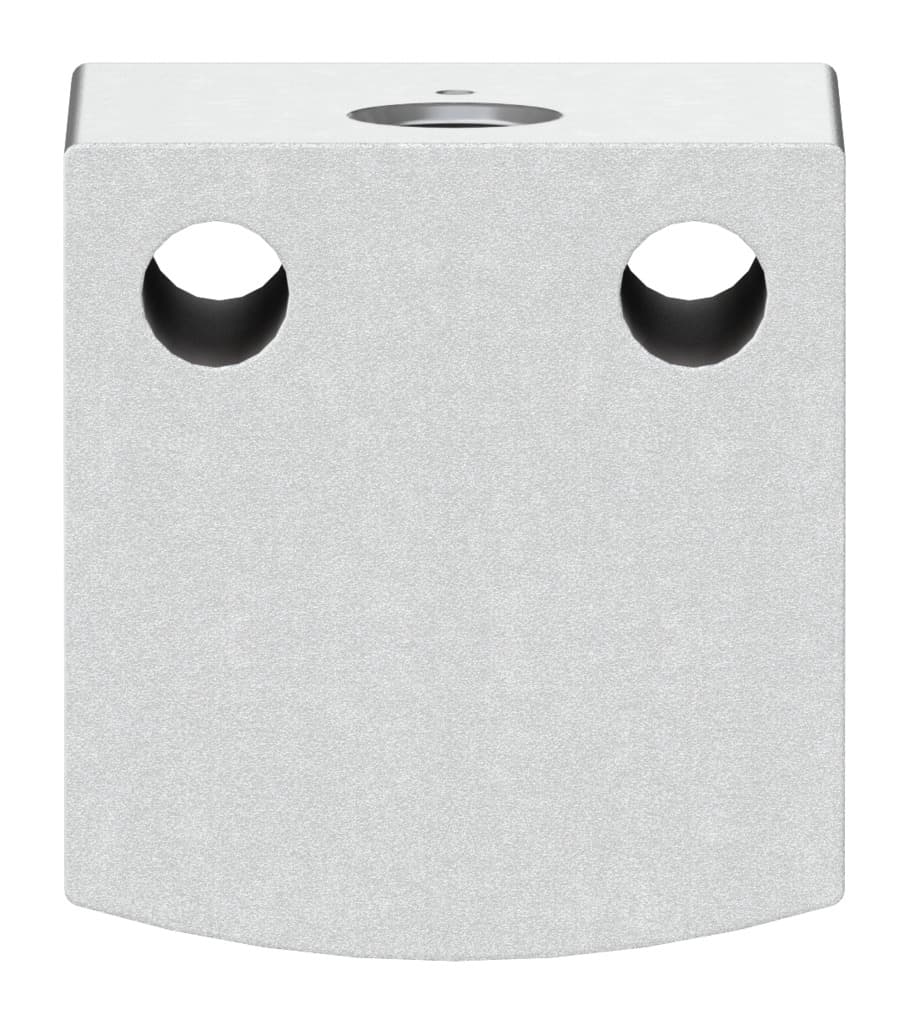

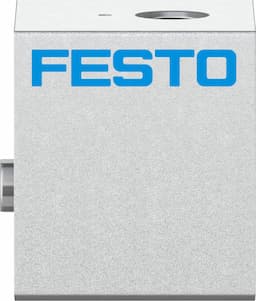

Festo AEVC-10-5-P Short Stroke Cylinder - High-Quality Pneumatic Solutions

Selling Points

1The Festo AEVC-10-5-P short stroke cylinder is designed for precise and reliable pneumatic operations, making it ideal for various industrial applications.
2This cylinder features flexible cushioning rings/plates at both ends, ensuring smooth and controlled movement.
3With a piston diameter of 10 mm and a stroke length of 5 mm, the AEVC-10-5-P offers compact design and high precision.
4The cylinder operates within a temperature range of -20°C to +80°C and supports operating pressures from 1.5 to 8 bar.
5The AEVC-10-5-P is constructed with high-quality materials, including wrought aluminum alloy for the housing and high-alloy steel for the piston rod, ensuring durability and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	10 mm
Spring resetting force with piston rod in retracted position	3N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	21.75psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	43N
Moving mass	2g	Product weight	14g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188070

Specifications may be subject to change without notice
