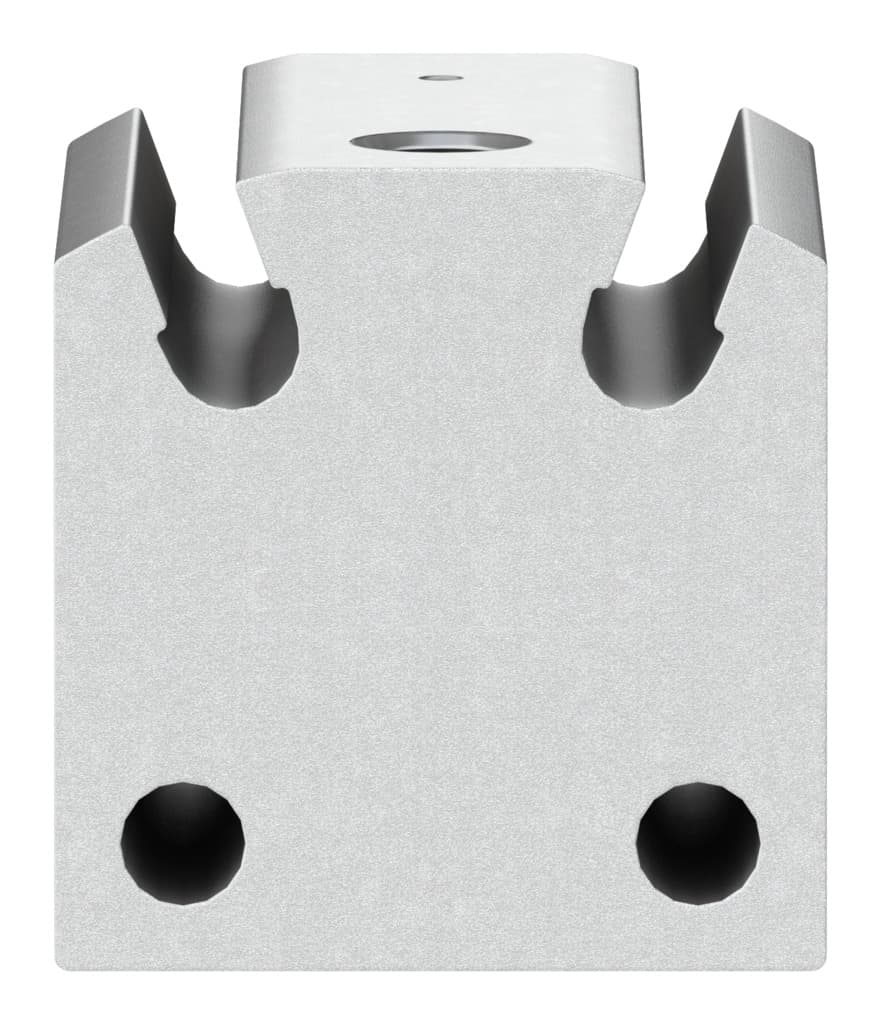

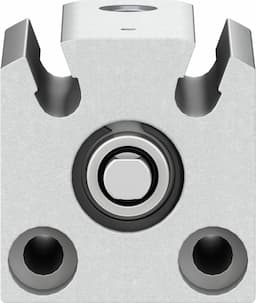

Festo AEVC-10-5-P-A Pneumatic Cylinder: High Precision and Flexibility

Selling Points

1The AEVC-10-5-P-A pneumatic cylinder offers a 5mm stroke and 10mm piston diameter, making it suitable for precise and flexible applications.
2Equipped with flexible cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The AEVC-10-5-P-A operates within a wide pressure range of 1.5 to 8 bar, accommodating various industrial requirements.
4Classified as CRC 1, this cylinder has low corrosion stress, making it suitable for use in environments with moderate corrosive conditions.
5With a weight of 29g and dimensions of 10 x 0 x 5mm, the AEVC-10-5-P-A is a compact and lightweight solution for your automation needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	10 mm
Spring resetting force with piston rod in retracted position	3N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	41N
Moving mass	3g	Product weight	29g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188068

Specifications may be subject to change without notice
