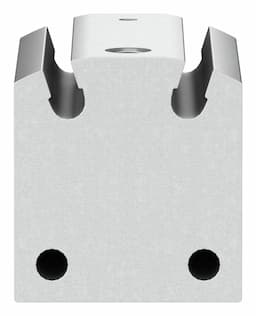

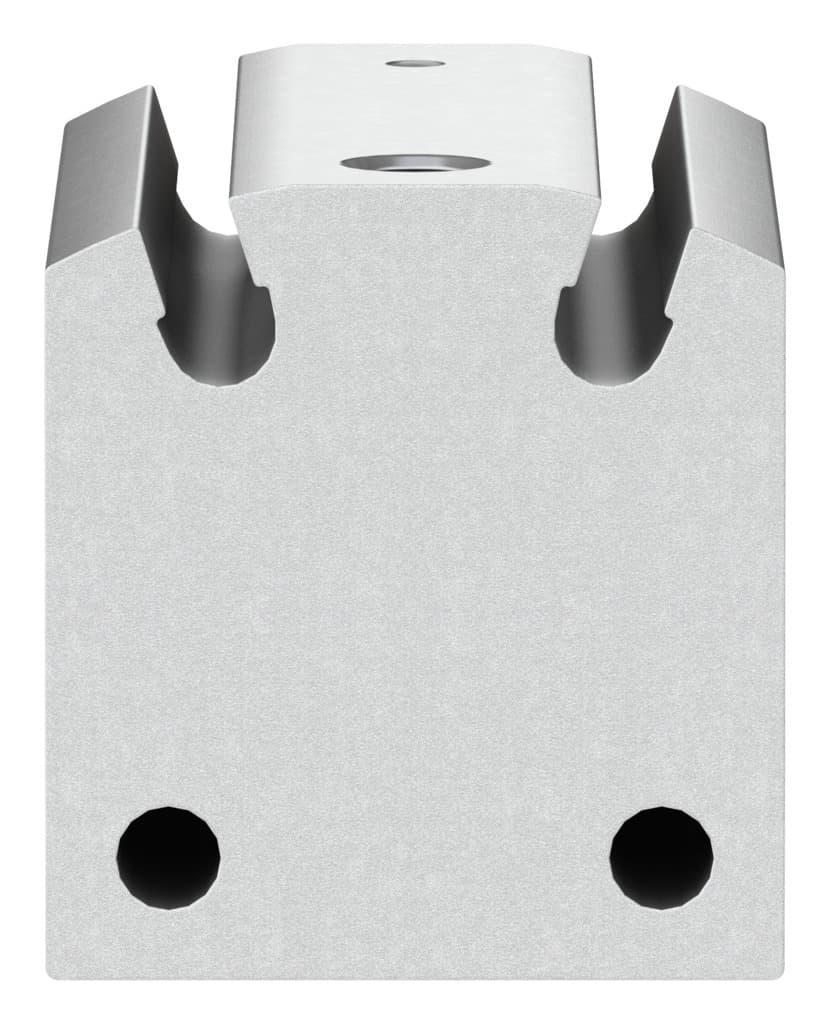

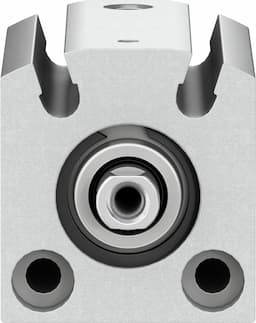

Festo AEVC-12-10-I-P-A Short-Stroke Cylinder | High-Quality Pneumatic Components

Selling Points

1The Festo AEVC-12-10-I-P-A short-stroke cylinder offers precise control and reliable operation, making it ideal for various industrial applications.
2With a stroke length of 10 mm and a piston diameter of 12 mm, this cylinder is perfect for applications requiring minimal space.
3Equipped with elastic cushioning rings/plates at both ends, the AEVC-12-10-I-P-A ensures smooth operation and reduces wear and tear.
4Available for mounting via through-hole or accessories, this cylinder provides flexibility in installation, catering to different application needs.
5Meets ISO 8573-1:2010 standards for compressed air quality and is RoHS-compliant, ensuring it meets environmental and safety regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	12 mm
Spring resetting force with piston rod in retracted position	4N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	59N
Moving mass	9.5g	Product weight	62g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188081

Specifications may be subject to change without notice
