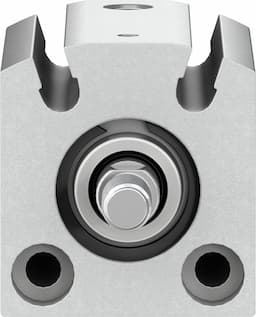

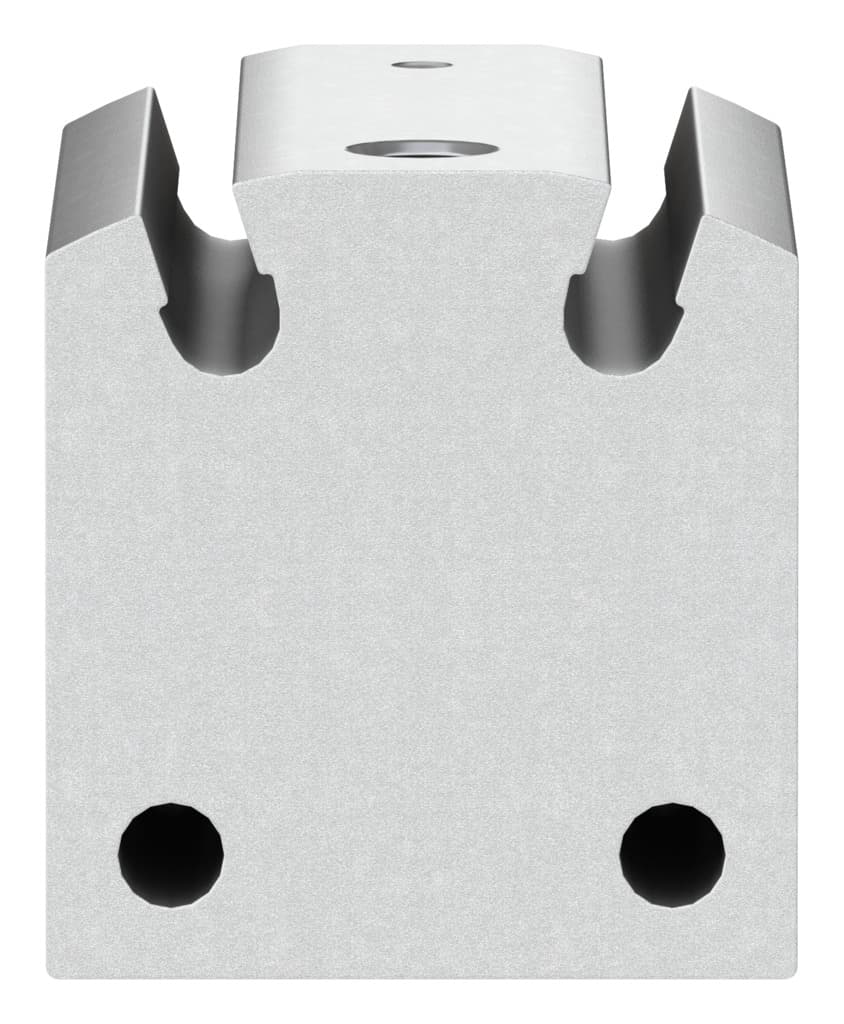

Festo AEVC-12-5-A-P-A Short Stroke Cylinder

Selling Points

1The AEVC-12-5-A-P-A short stroke cylinder from Festo is designed for proximity sensing applications, featuring a 5mm stroke and 12mm piston diameter.
2This cylinder offers flexible cushioning rings/plates at both ends, ensuring smooth operation and durability.
3With a spring return force of 4 N in the retracted position, the AEVC-12-5-A-P-A provides reliable and consistent performance.
4The cylinder is made from high-quality materials, including wrought aluminum alloy with anodized finish and high-alloy steel for the piston rod.
5The AEVC-12-5-A-P-A is versatile in its mounting position, allowing for any assembly configuration to meet specific application needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	12 mm
Spring resetting force with piston rod in retracted position	4N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	59N
Moving mass	8.4g	Product weight	58g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188084
