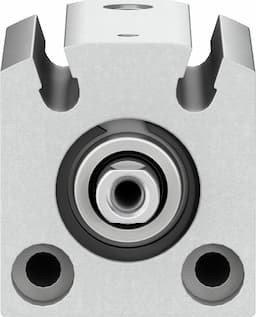

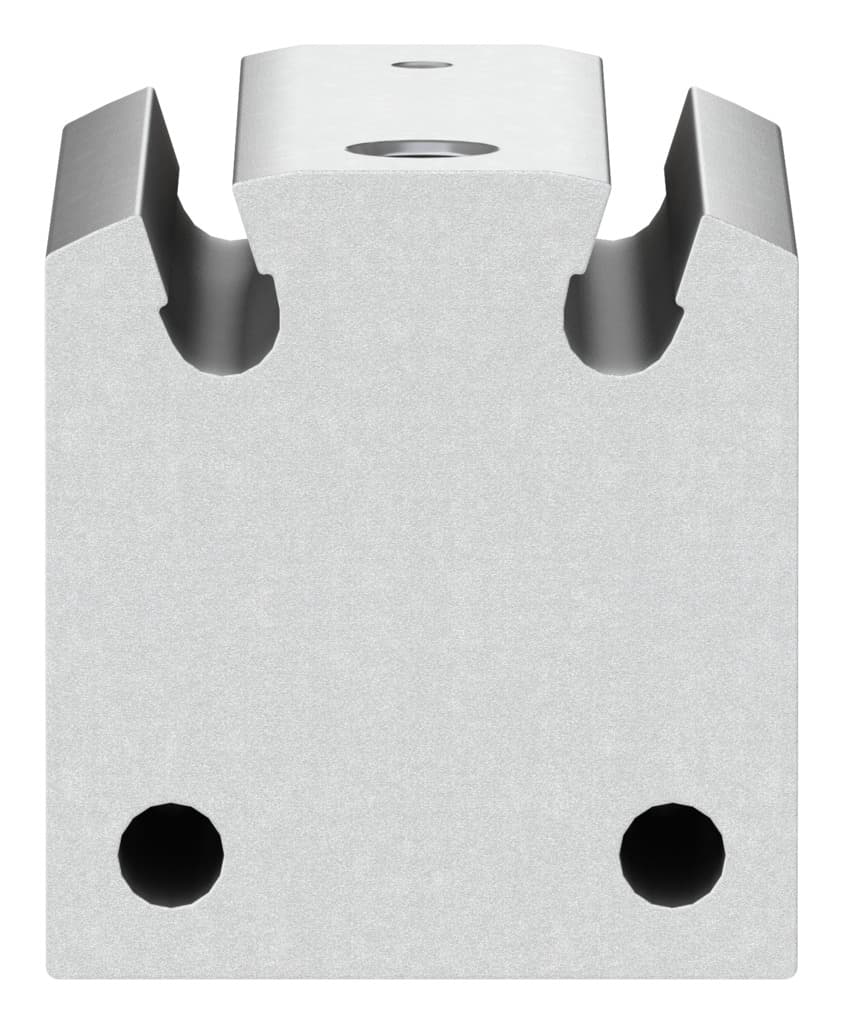

Festo AEVC-12-5-I-P-A Short-Stroke Cylinder | High-Quality Pneumatic Solutions

Selling Points

1The Festo AEVC-12-5-I-P-A short-stroke cylinder offers a stroke length of 5 mm, making it ideal for applications requiring precise and controlled movements.
2With a piston diameter of 12 mm, this cylinder provides a robust design that ensures reliable operation under various operating conditions.
3The AEVC-12-5-I-P-A features elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear and tear on the cylinder.
4This cylinder is designed for single-acting operation and can be mounted via through-hole or with accessories, offering flexibility in installation.
5The AEVC-12-5-I-P-A operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), ensuring compatibility with a wide range of pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	12 mm
Spring resetting force with piston rod in retracted position	4N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	59N
Moving mass	8.4g	Product weight	51g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188080

Specifications may be subject to change without notice
