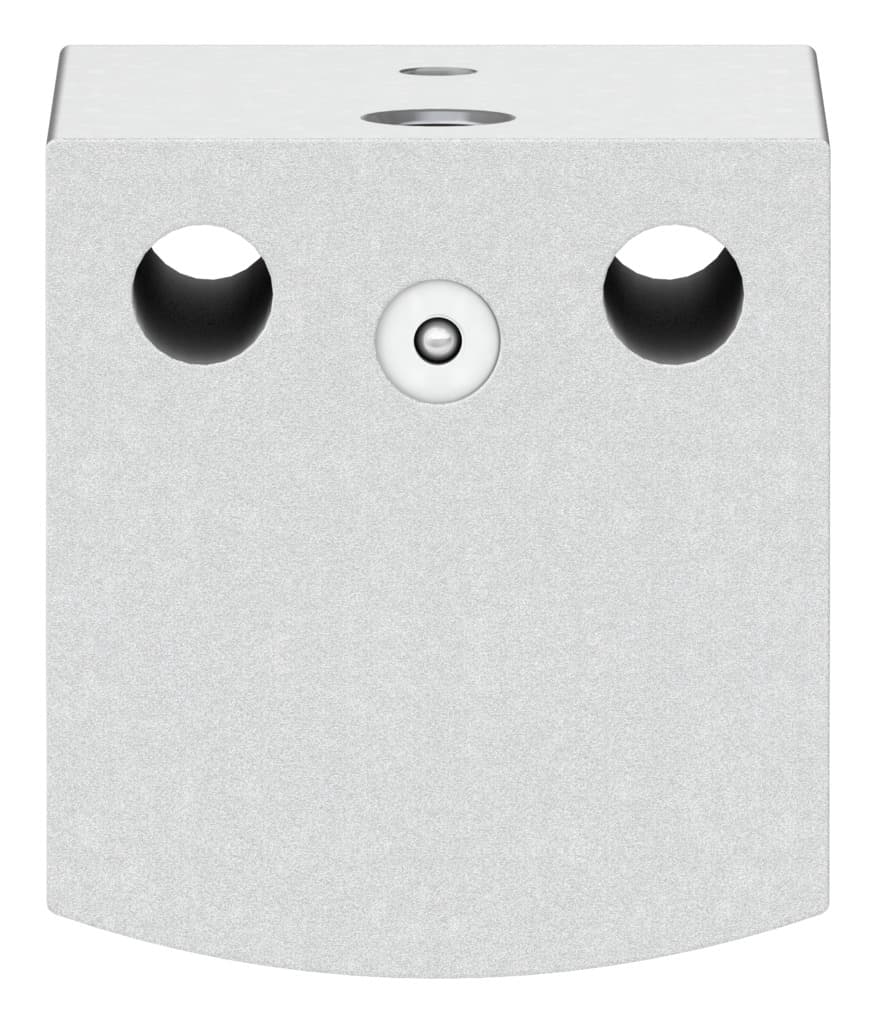

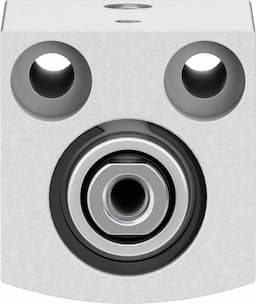

Festo AEVC-16-10-I-P Short-Stroke Cylinder - High-Quality Pneumatic Component

Selling Points

1The Festo AEVC-16-10-I-P short-stroke cylinder offers a 10mm stroke length, making it perfect for applications requiring precise movement and control.
2With a piston diameter of 16mm, this cylinder provides a robust and reliable performance in various industrial settings.
3Equipped with elastic cushioning rings/plates at both ends, the AEVC-16-10-I-P ensures smooth operation and reduces wear and tear.
4Designed for single-acting operation, this cylinder is ideal for applications where a pushing motion is required, such as in assembly lines or material handling systems.
5Operating within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), the AEVC-16-10-I-P can be used in a variety of pneumatic systems, ensuring flexibility and adaptability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	16 mm
Spring resetting force with piston rod in retracted position	5N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	112N
Moving mass	11g	Product weight	47g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188100

Specifications may be subject to change without notice
