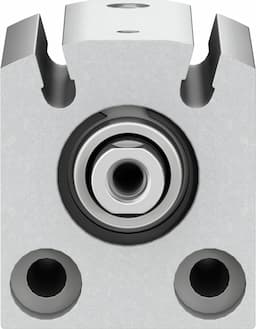

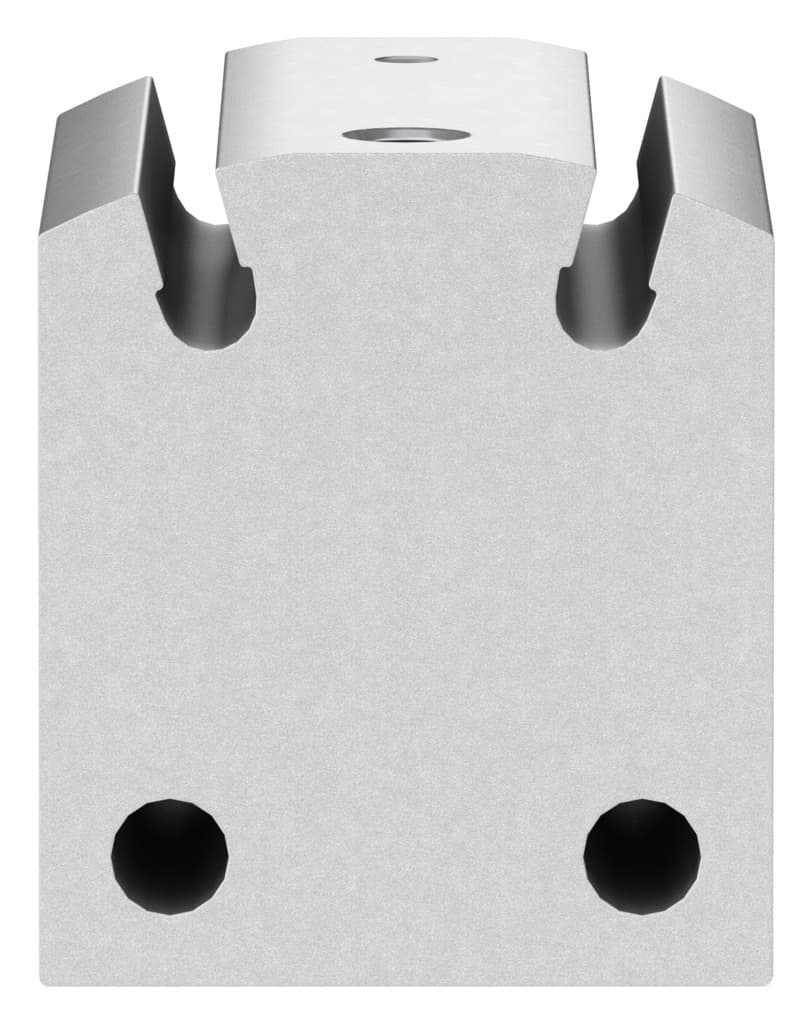

Festo AEVC-16-10-I-P-A Short Stroke Cylinder Specifications

Selling Points

1The Festo AEVC-16-10-I-P-A short stroke cylinder offers a stroke length of 10 mm, making it suitable for applications requiring precise and compact movements.
2This cylinder operates within a temperature range of -20°C to +80°C and can withstand operating pressures from 1.5 to 10 bar, ensuring reliability in diverse environments.
3The AEVC-16-10-I-P-A features elastic cushioning rings/pads at both ends, providing smooth operation and reducing wear on the components.
4The cylinder is designed for lubricated operation, which is always required, ensuring optimal performance and longevity of the components.
5With a moving mass of 320 grams and a theoretical force at 6 bar of 112 Newtons, this cylinder is well-suited for applications requiring moderate force and precision control.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	16 mm
Spring resetting force with piston rod in retracted position	5N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	112N
Moving mass	17g	Product weight	86g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188097

Specifications may be subject to change without notice
