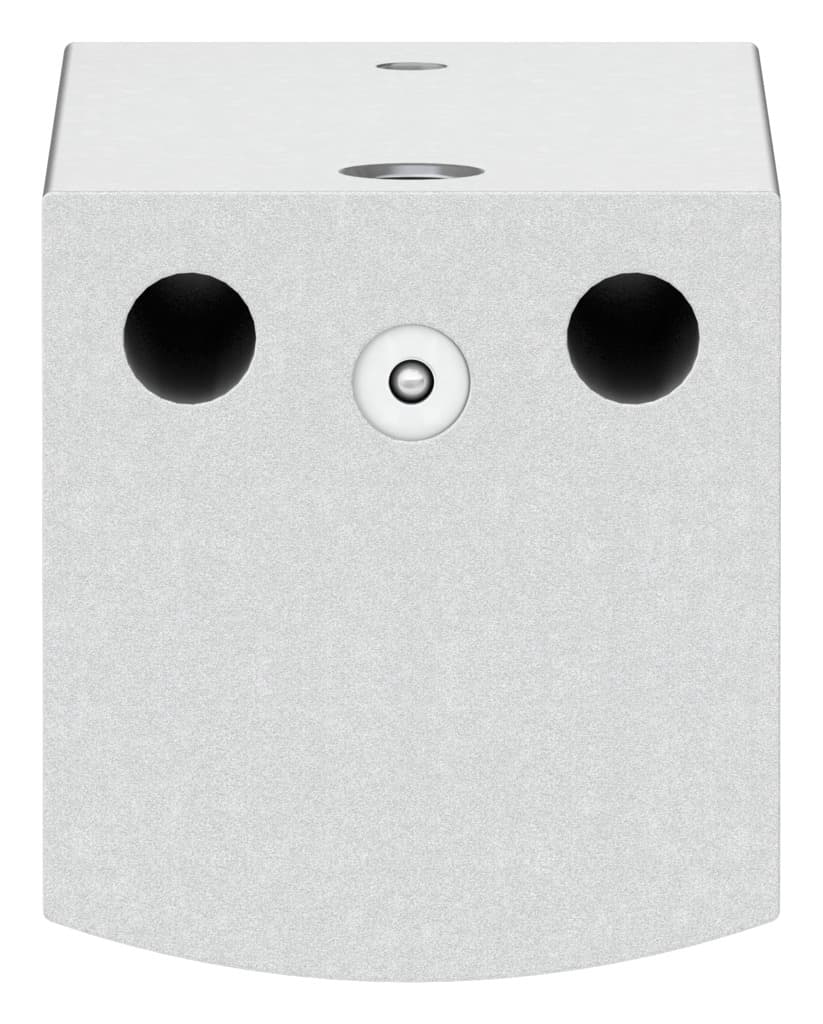

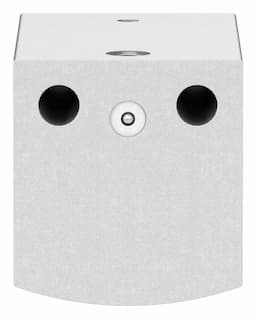

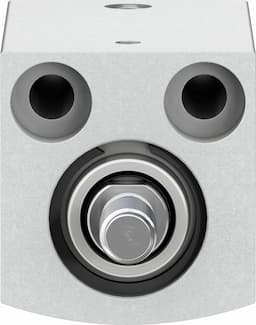

Product Model
aevc-16-25-a-p
Selling Points
- 1Elastic Cushioning Rings/Plates: Ensures smooth operation and reduces wear on the cylinder.
- 2Low Corrosion Stress: Designed with a corrosion resistance class of 1, suitable for various industrial environments.
- 3Versatile Mounting Options: Can be mounted via through-hole or with accessories, offering flexibility in installation.
- 4Compressed Air Operation: Compatible with ISO 8573-1:2010 standards, ensuring reliable performance with compressed air.
- 5Spring Return Force: Provides a consistent 5 N spring return force, ideal for single-acting pushing actions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Spring resetting force with piston rod in retracted position | 5N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 105N |
Moving mass | 19g | Product weight | 81g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188107 |
Specifications may be subject to change without notice
