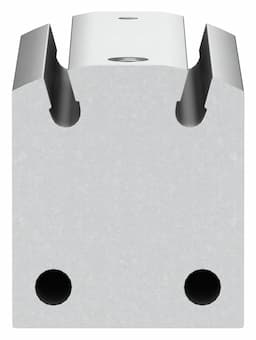

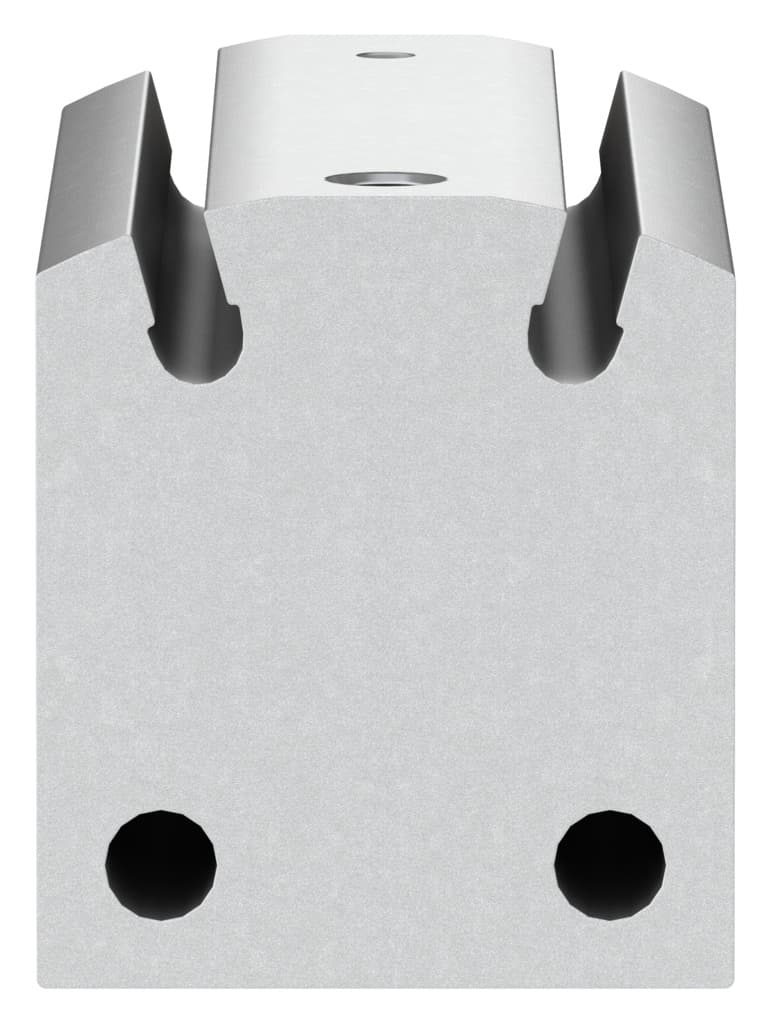

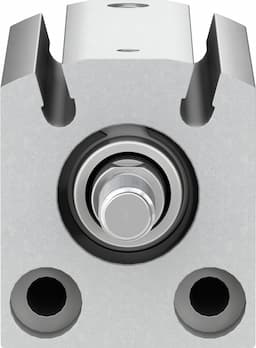

Product Model
aevc-16-25-a-p-a
Selling Points
- 125mm stroke and 16mm piston diameter for efficient operation.
- 2Optional mounting positions and through-hole or accessory options.
- 3Double-sided elastic silencer rings/plates for smooth operation.
- 4Low corrosion stress with CRC 1 classification.
- 5Compatible with compressed air (1.5 to 10 bar) and ambient temperatures (-20 to 80°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Spring resetting force with piston rod in retracted position | 5N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 105N |
Moving mass | 26g | Product weight | 131g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188104 |
Specifications may be subject to change without notice
