Product Model

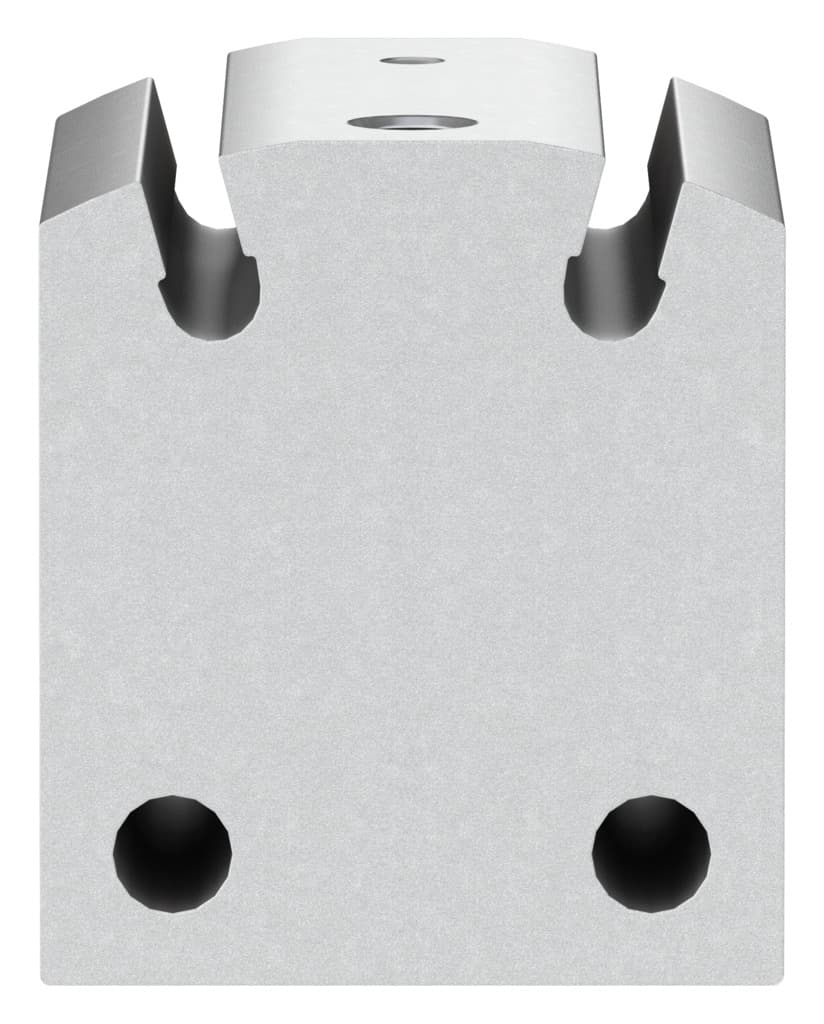

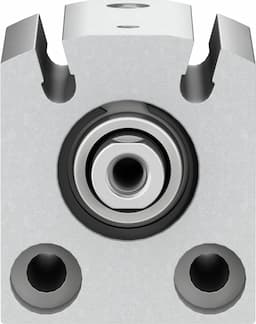

aevc-16-5-i-p-a
Selling Points
- 1High-Performance Operation: The AEVC-16-5-I-P-A short stroke cylinder operates efficiently with compressed air, offering a stroke length of 5 mm and an operating pressure range of 1.5 to 10 bar.
- 2Versatile Mounting Options: This cylinder can be mounted via through-hole or accessories, providing flexibility in various automation setups.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends, the AEVC-16-5-I-P-A ensures smooth and controlled movement, reducing wear and tear.
- 4Corrosion Resistance: Built with a corrosion resistance class of CRC 1, this cylinder is suitable for applications in environments with low corrosion stress.
- 5Compact Design: With a moving mass of 15 grams and a weight of 95 grams, the AEVC-16-5-I-P-A is a compact yet powerful component for automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Spring resetting force with piston rod in retracted position | 5N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 112N |
Moving mass | 15g | Product weight | 76g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188096 |
Specifications may be subject to change without notice
