Product Model

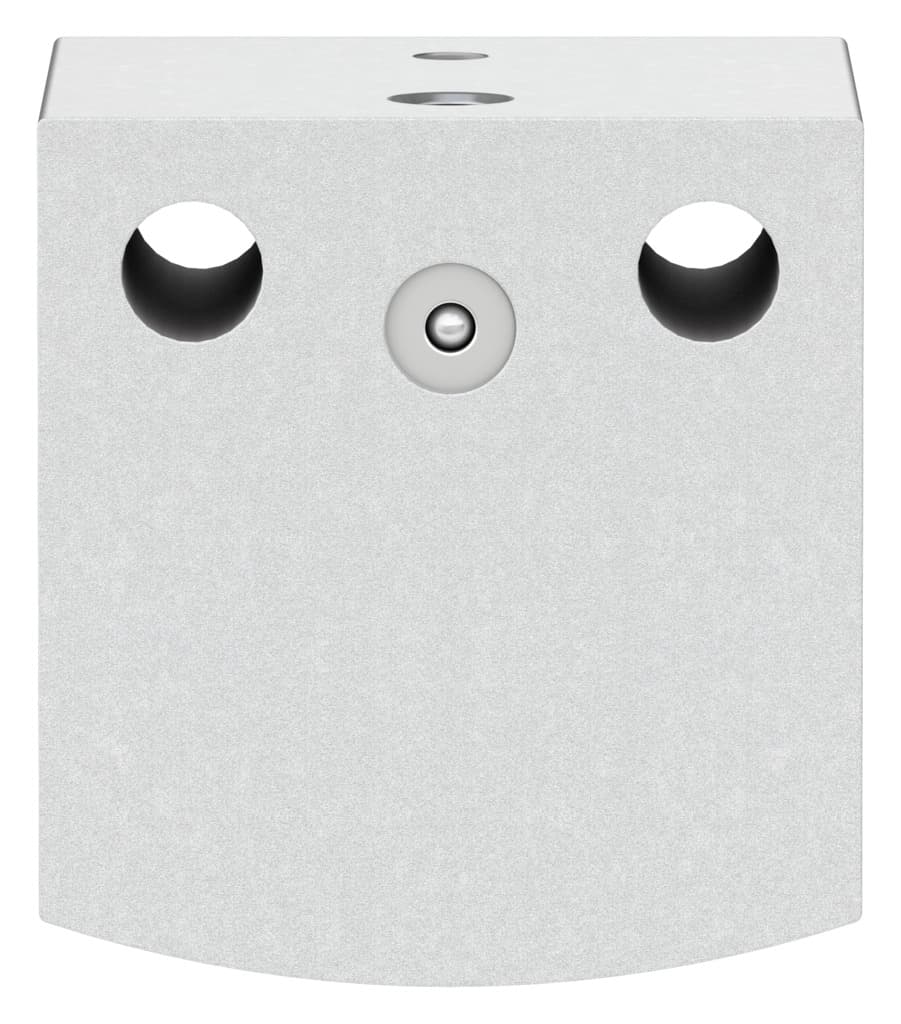

aevc-20-10-a-p
Selling Points
- 1High Precision Design: The AEVC-20-10-A-P cylinder ensures precise movement with a stroke of 10 mm and a piston diameter of 20 mm.
- 2Low Corrosion Resistance: With a corrosion resistance class of CRC 1, this cylinder is designed to withstand low corrosion stress in various environments.
- 3Flexible Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
- 4Versatile Mounting Options: Can be mounted via through-hole or with accessories, offering flexibility in installation.
- 5Compliant with ISO Standards: Operates with compressed air to ISO 8573-1:2010 [7:4:4], ensuring compatibility with industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 20 mm |
Spring resetting force with piston rod in retracted position | 10N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 170N |
Moving mass | 21g | Product weight | 87g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188138 |
Specifications may be subject to change without notice
