Product Model

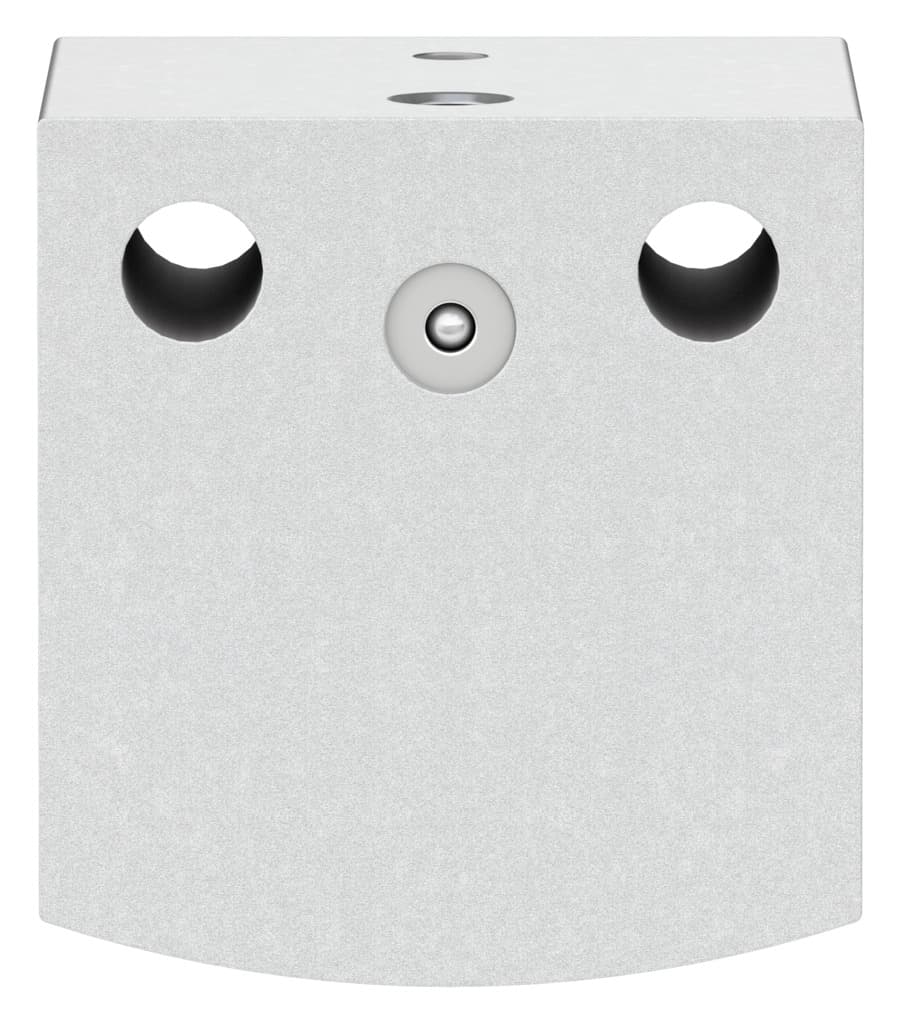

aevc-20-10-i-p
Selling Points
- 1Made from durable wrought aluminum alloy with anodized finish.
- 210mm stroke and 20mm piston diameter for accurate control.
- 3Equipped with elastic cushioning rings at both ends for smooth operation.
- 4Can be mounted via through-hole or with accessories.
- 5Low corrosion stress with a corrosion resistance class of 1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 20 mm |
Spring resetting force with piston rod in retracted position | 10N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 170N |
Moving mass | 21g | Product weight | 81g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188132 |
Specifications may be subject to change without notice
