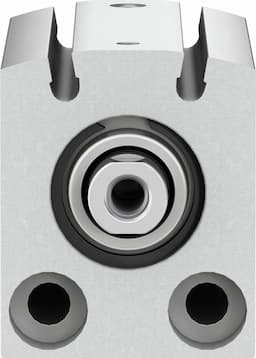

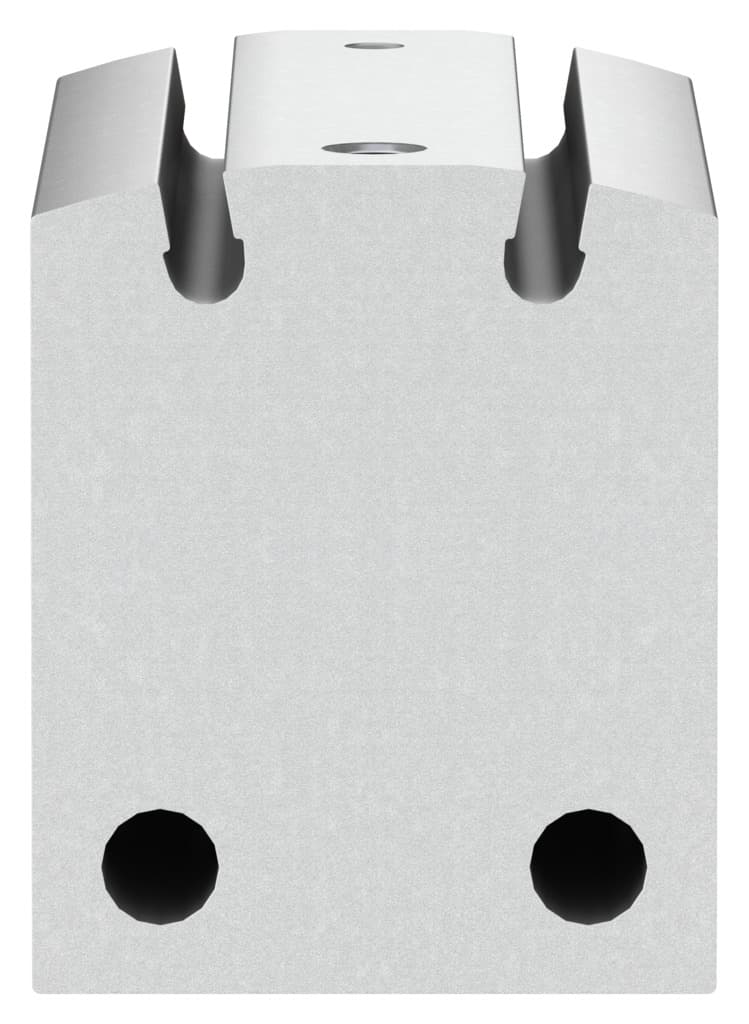

Product Model
aevc-20-25-i-p-a
Selling Points
- 1Compact Design: Ideal for space-constrained applications with a stroke length of 25mm.
- 2High Precision: Equipped with flexible cushioning rings/plates at both ends for smooth operation.
- 3Single-Acting: Designed for pushing action, suitable for applications requiring a straightforward motion.
- 4Proximity Sensing: Compatible with proximity sensors for precise position detection.
- 5Wide Operating Range: Operates effectively within 1.5 to 10 bar pressure range, ensuring versatility in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 20 mm |
Spring resetting force with piston rod in retracted position | 10N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 170N |
Moving mass | 40g | Product weight | 183g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188130 |
Specifications may be subject to change without notice
