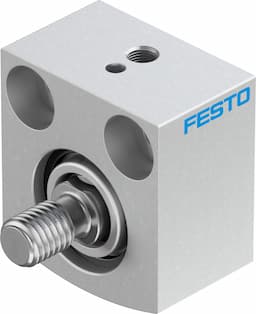

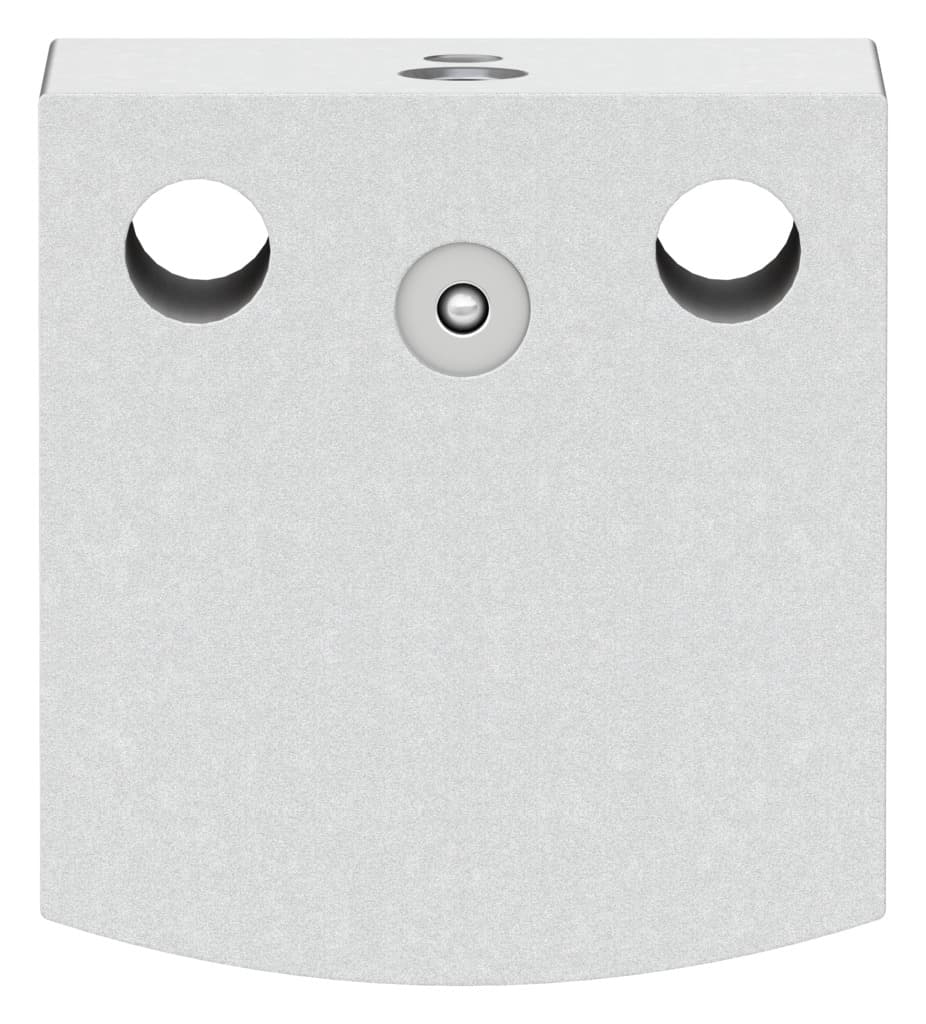

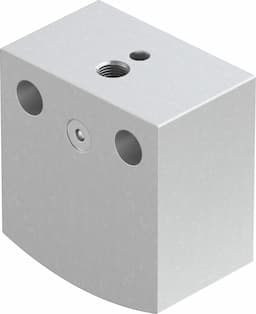

Festo AEVC-20-5-A-P Short-Stroke Cylinder

Selling Points

1Precise Stroke Control: The AEVC-20-5-A-P offers a stroke length of 5 mm, ensuring precise movement in various applications.
2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
3Low Corrosion Resistance: Designed with a corrosion resistance class of CRC 1, suitable for environments with low corrosion stress.
4Versatile Mounting Options: Can be mounted via through-hole or accessories, providing flexibility in installation.
5Compact Design: Weighs only 57 grams, making it an ideal choice for space-constrained applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	20 mm
Spring resetting force with piston rod in retracted position	5N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	180N
Moving mass	14g	Product weight	57g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188137
