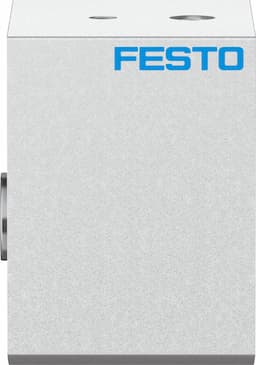

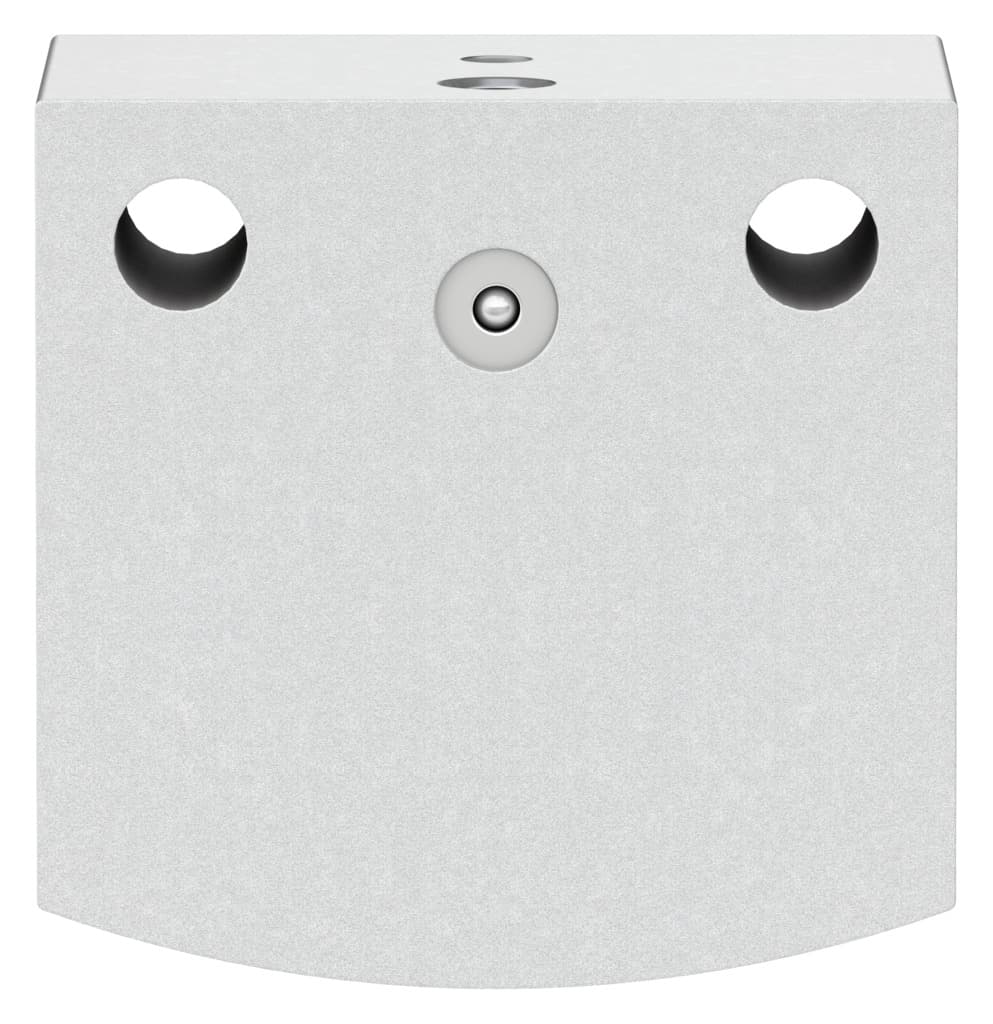

Festo AEVC-25-5-I-P Short-Stroke Cylinder

Selling Points

1Reliable Quality: Built with high-quality materials for consistent performance.
2Elastic Cushioning: Features elastic cushioning rings/pads at both ends for smooth operation.
3Low Corrosion Stress: Meets CRC 1 standards for low corrosion stress in various industrial environments.
4Versatile Mounting: Can be mounted via through-hole or with accessories, offering flexibility in installation.
5Compressed Air Compatible: Operates with compressed air to ISO 8573-1:2010 standards, ensuring efficient pneumatic control.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	25 mm
Spring resetting force with piston rod in retracted position	15N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	272N
Moving mass	22g	Product weight	90g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188163

Specifications may be subject to change without notice
