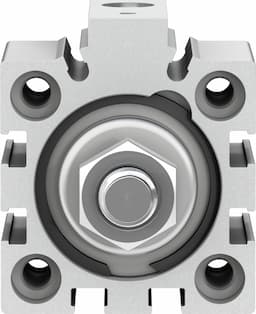

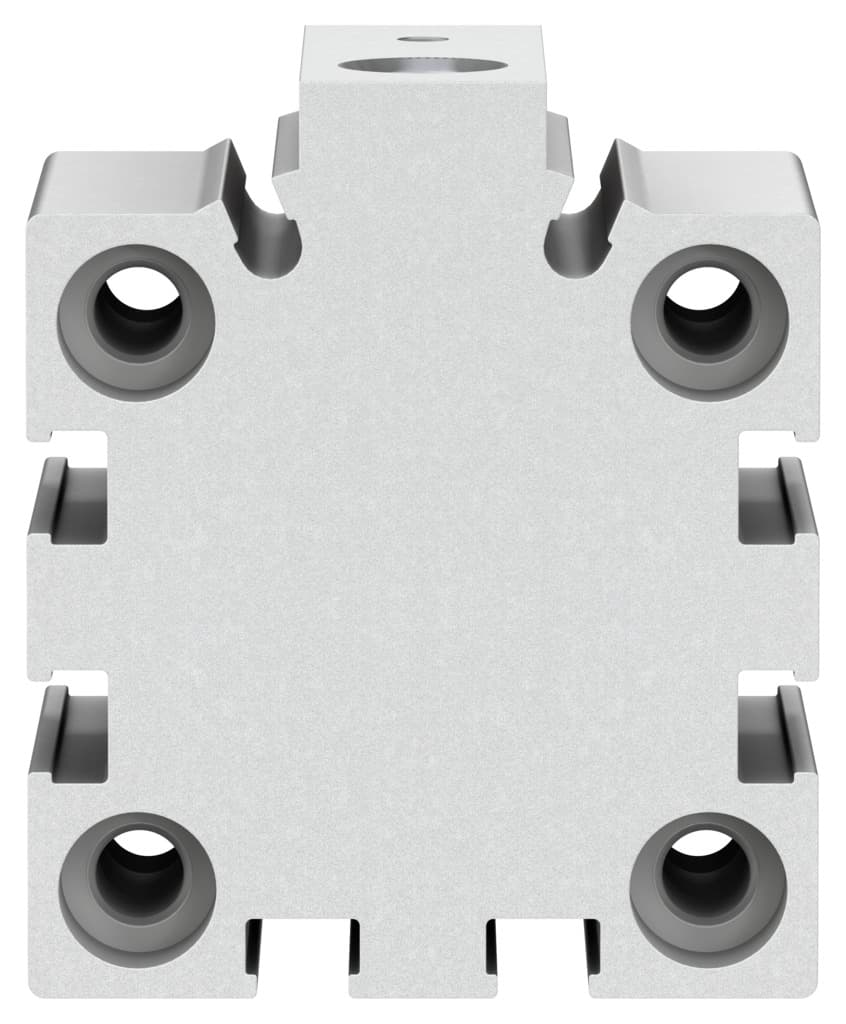

Festo AEVC-32-10-A-P Short-Stroke Cylinder - High Precision & Flexibility

Selling Points

1High Precision Design: Engineered to meet ISO 6431 standards for precise performance.
2Flexible Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation.
3Versatile Mounting: Can be mounted in any position, offering flexibility in application.
4Low Corrosion Stress: Classified as CRC 1, ensuring durability in various environments.
5Compressed Air Compatible: Operates with compressed air according to ISO 8573-1:2010 [7:4:4] standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	32 mm
Spring resetting force with piston rod in retracted position	22N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	450N	Moving mass	48g
Product weight	169g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188202

Specifications may be subject to change without notice
