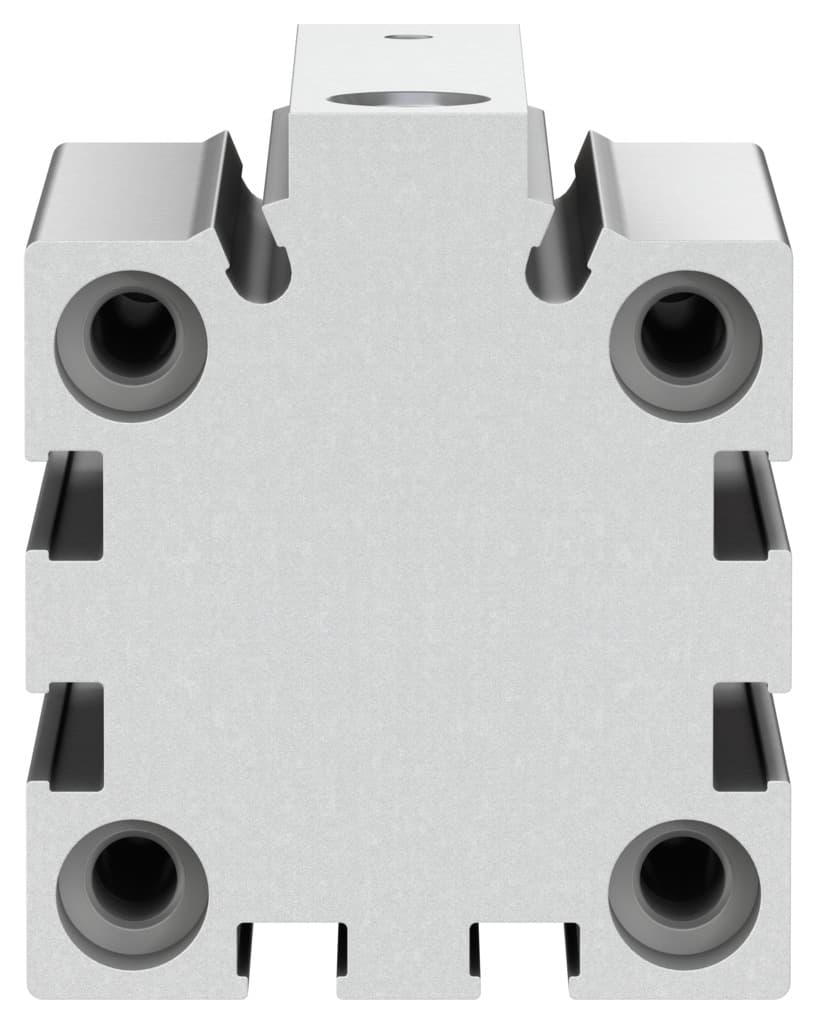

Festo AEVC-32-25-A-P-A Short-Stroke Cylinder

Selling Points

1Precision Engineering: Designed with precision to ensure reliable performance in various applications.
2Flexible Cushioning: Equipped with flexible cushioning rings/plates at both ends for smooth operation.
3Versatile Assembly: Can be assembled in any position, offering flexibility in installation.
4Proximity Sensing Capable: Ideal for proximity sensing applications, enhancing precision and accuracy.
5Compressed Air Compatible: Operates with compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring efficient operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	32 mm
Spring resetting force with piston rod in retracted position	22N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991729
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	450N	Moving mass	67g
Product weight	260g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188200

Specifications may be subject to change without notice
