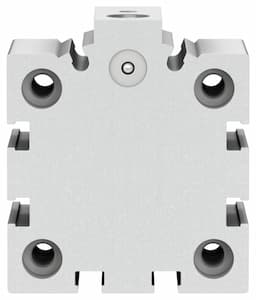

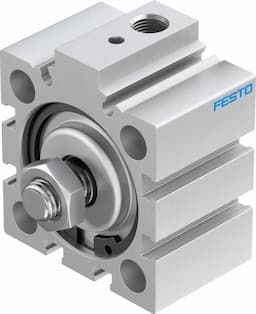

Festo AEVC-40-10-A-P Short-Stroke Cylinder - High Precision and Reliability

Selling Points

1High Precision and Reliability: Engineered to deliver precise movements with minimal stroke length, ensuring reliable performance in various pneumatic applications.
2Compact Design: Compact dimensions (stroke length: 10 mm, piston diameter: 40 mm) make it ideal for space-constrained environments.
3Operates with Compressed Air: Compatible with compressed air as per ISO 8573-1:2010, ensuring consistent performance in a variety of operating conditions.
4Low Corrosion Stress: Designed with a low corrosion resistance class (CRC1), minimizing the risk of damage from corrosive environments.
5Flexible Cushioning Rings: Equipped with flexible cushioning rings at both ends for smooth operation and reduced wear on the cylinder.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	40 mm
Spring resetting force with piston rod in retracted position	28N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	708N	Moving mass	65g
Product weight	234g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188230

Specifications may be subject to change without notice
