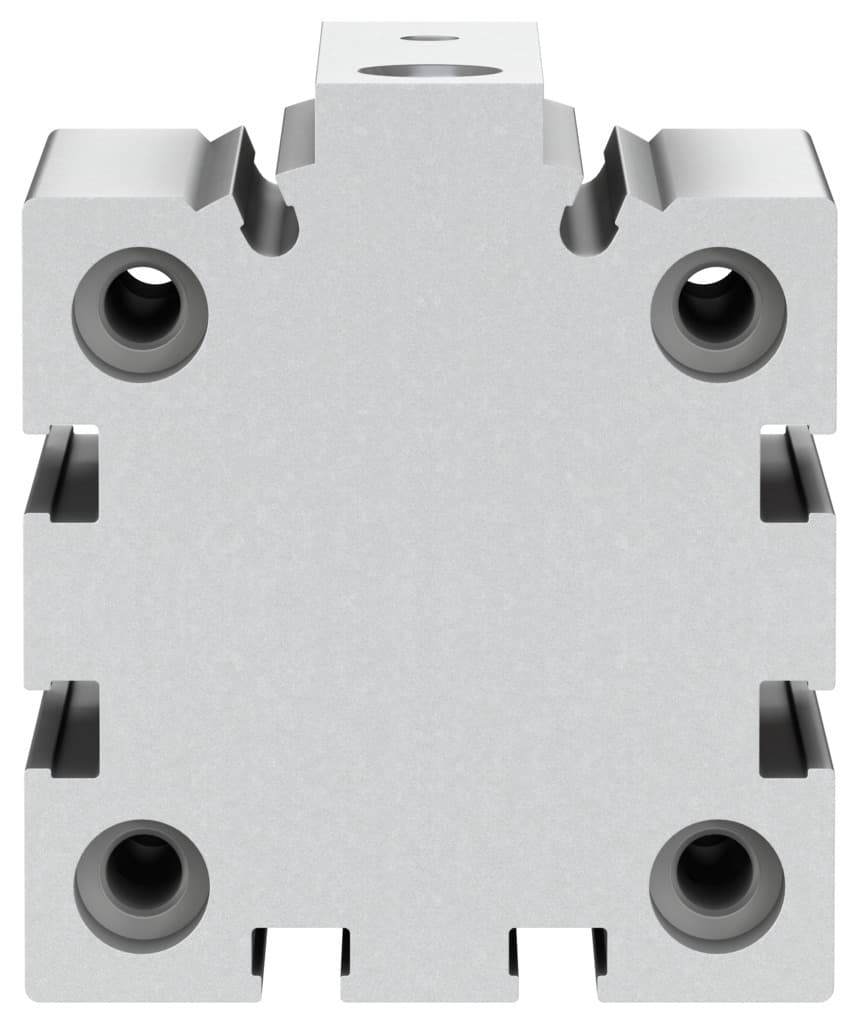

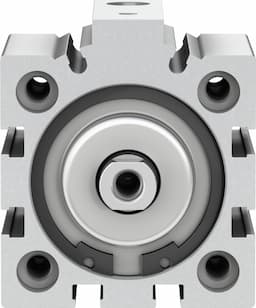

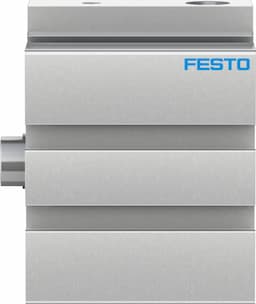

Product Model
aevc-40-10-i-p-a
Selling Points
- 1Precision Automation: Designed for precise applications with a 10mm stroke and 40mm piston diameter.
- 2Compressed Air Operation: Compatible with compressed air as per ISO 8573-1:2010 [7:4:4].
- 3Low Corrosion Stress: Features a corrosion resistance class (CRC) of 1, ensuring low corrosion stress.
- 4Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
- 5RoHS-Compliant Materials: Made from RoHS-compliant materials including wrought aluminum alloy and high-alloy steel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 40 mm |
Spring resetting force with piston rod in retracted position | 28N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991729 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 707N | Moving mass | 70g |
Product weight | 304g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188224 |
Specifications may be subject to change without notice
