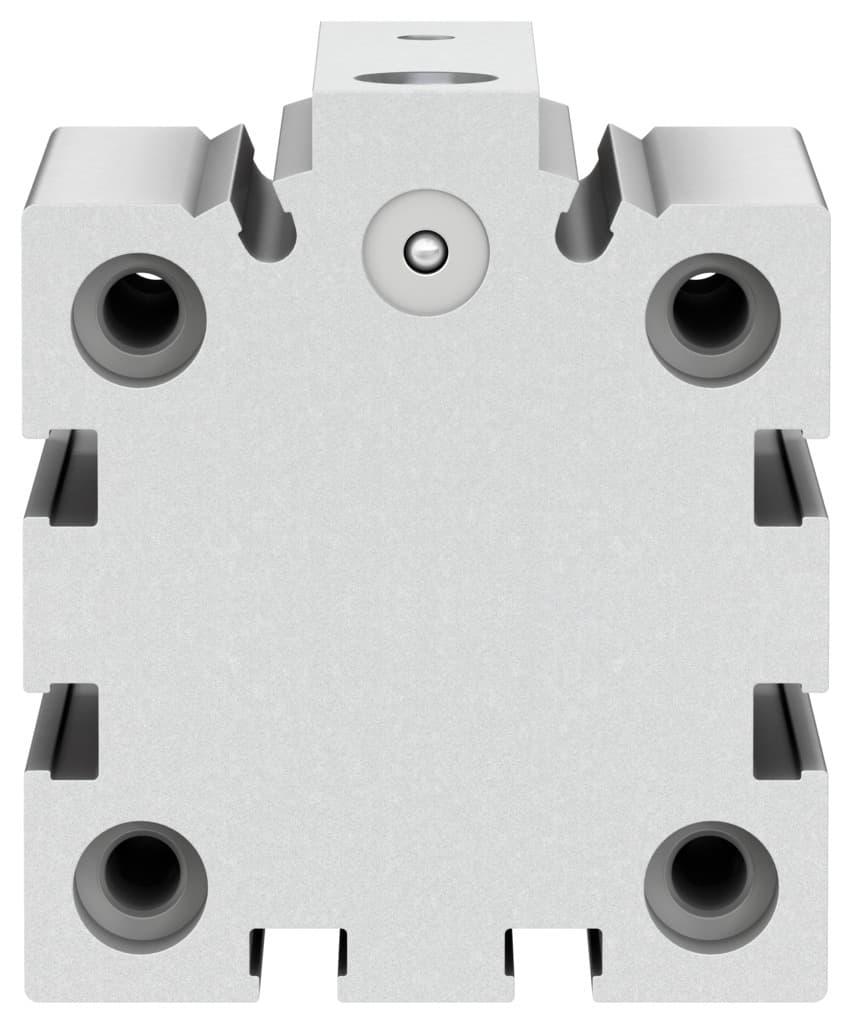

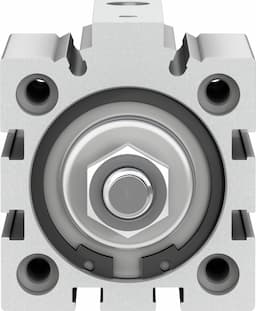

Festo AEVC-40-25-A-P Short-Stroke Cylinder - High-Quality Pneumatic Solution

Selling Points

1High-precision pneumatic connection: G1/8 connection ensures reliable and precise operation.
2Elastic cushioning: Flexible cushioning rings/pads at both ends for smooth and durable performance.
3Low corrosion stress: Corrosion resistance class (CRC) 1 for long-lasting use in various conditions.
4Wide operating pressure range: Operating pressure from 0.1 to 10 bar for versatile applications.
5Robust construction: Made from high-quality materials like wrought aluminum alloy and high-alloy steel for durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	40 mm
Spring resetting force with piston rod in retracted position	28N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	707N	Moving mass	83g
Product weight	337g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188231

Specifications may be subject to change without notice
