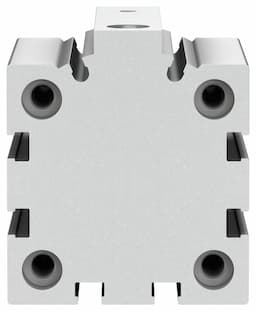

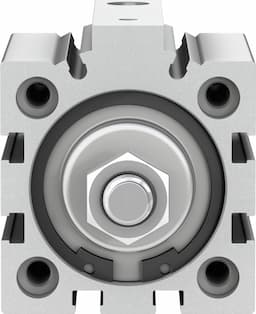

Festo AEVC-40-25-A-P-A Short Stroke Cylinder - High-Quality Pneumatic Solution

Selling Points

1High-Quality Construction: Built with durable wrought aluminum alloy and high-alloy steel for long-lasting performance.
2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
3Wide Operating Pressure Range: Compatible with operating pressures from 0.1 to 10 bar, making it versatile for various applications.
4Low Corrosion Stress: Designed with a corrosion resistance class of 1, ensuring reliability in harsh environments.
5Compliant with ISO Standards: Meets ISO 8573-1:2010 standards for compressed air quality, ensuring consistent performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	40 mm
Spring resetting force with piston rod in retracted position	28N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991729
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	707N	Moving mass	83g
Product weight	383g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188229

Specifications may be subject to change without notice
