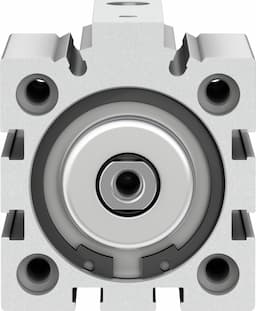

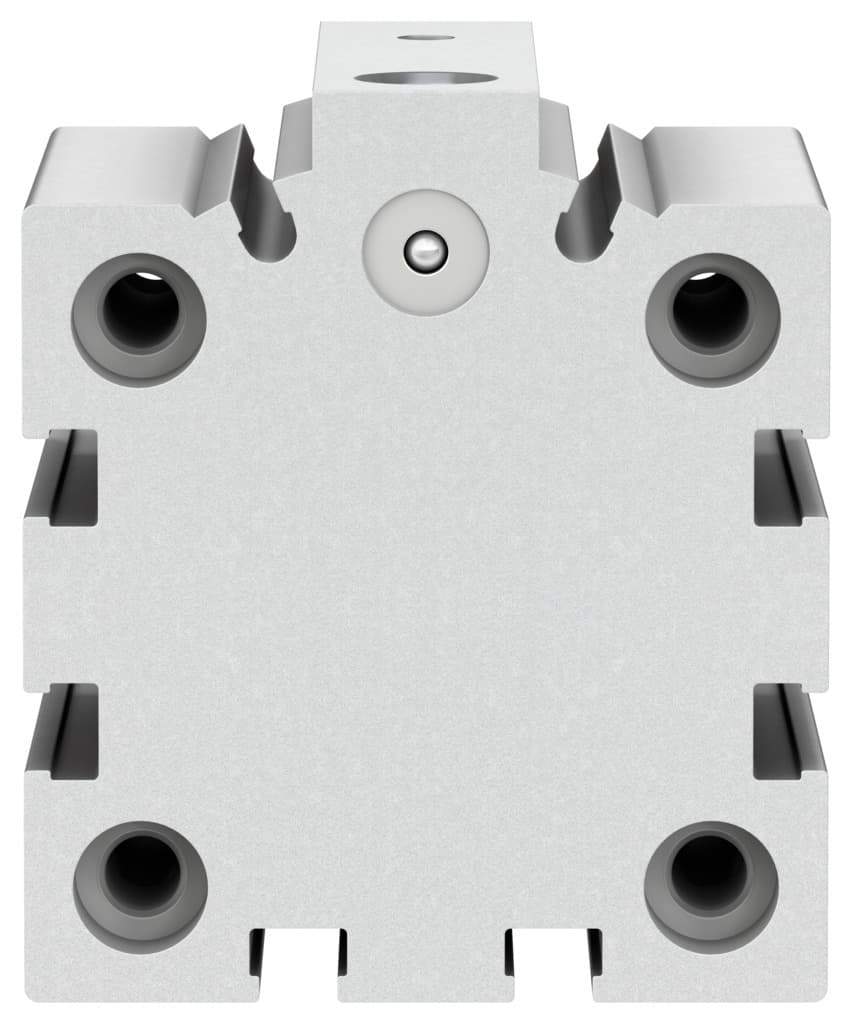

Product Model
aevc-40-25-i-p
Selling Points
- 1Precise Pneumatic Actuation: Ideal for applications requiring high accuracy and reliability.
- 2Elastic Cushioning: Ensures smooth operation with elastic cushioning rings/pads at both ends.
- 3Corrosion Resistance: Low corrosion stress with a corrosion resistance class of CRC 1.
- 4Compact Design: Suitable for any mounting position, including through-hole and accessory mounting.
- 5Versatile Operating Conditions: Operates effectively in temperatures from -20°C to +80°C and pressures from 0.1 MPa to 1 MPa.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 40 mm |
Spring resetting force with piston rod in retracted position | 28N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991730 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 707N | Moving mass | 83g |
Product weight | 320g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188227 |
Specifications may be subject to change without notice
