Product Model

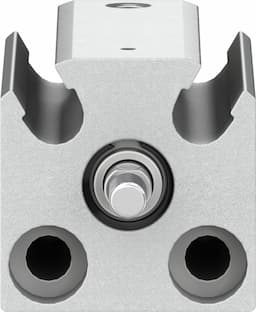

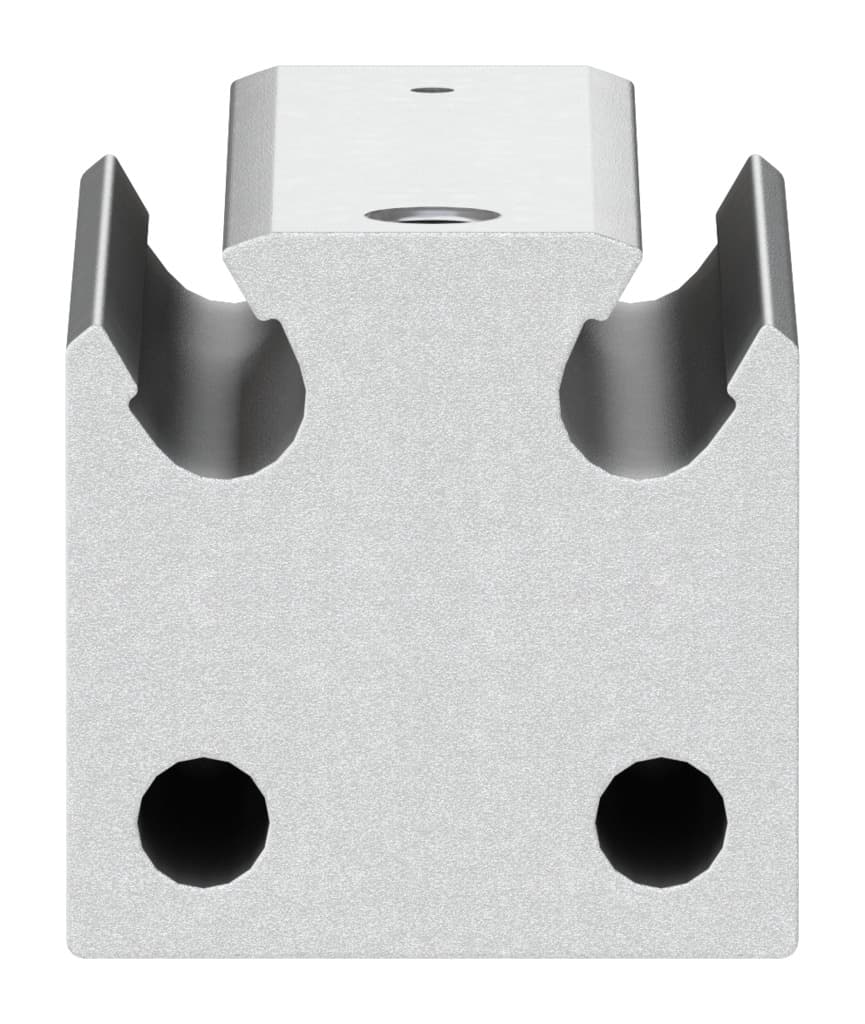

aevc-6-10-a-p-a

Selling Points
- 1The Festo Aevc-6-10-A-P-A pneumatic cylinder offers a robust design with standardized dimensions, ensuring easy integration into various industrial automation systems.
- 2This cylinder features a long stroke length, making it ideal for applications requiring extended movement ranges, such as in machine tools and handling systems.
- 3The Aevc-6-10-A-P-A cylinder is part of Festo's extensive range of pneumatic components, providing a one-stop solution for all your factory automation needs.
- 4With its high-quality construction and precise engineering, the Festo Aevc-6-10-A-P-A ensures reliable performance and minimal maintenance requirements, enhancing overall system efficiency.
- 5The cylinder's compatibility with Festo's IO-Link technology simplifies communication with sensors and actuators, reducing complexity and improving system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 36.25psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 11N |
Moving mass | 1.8g | Product weight | 18g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188061 |
Specifications may be subject to change without notice
