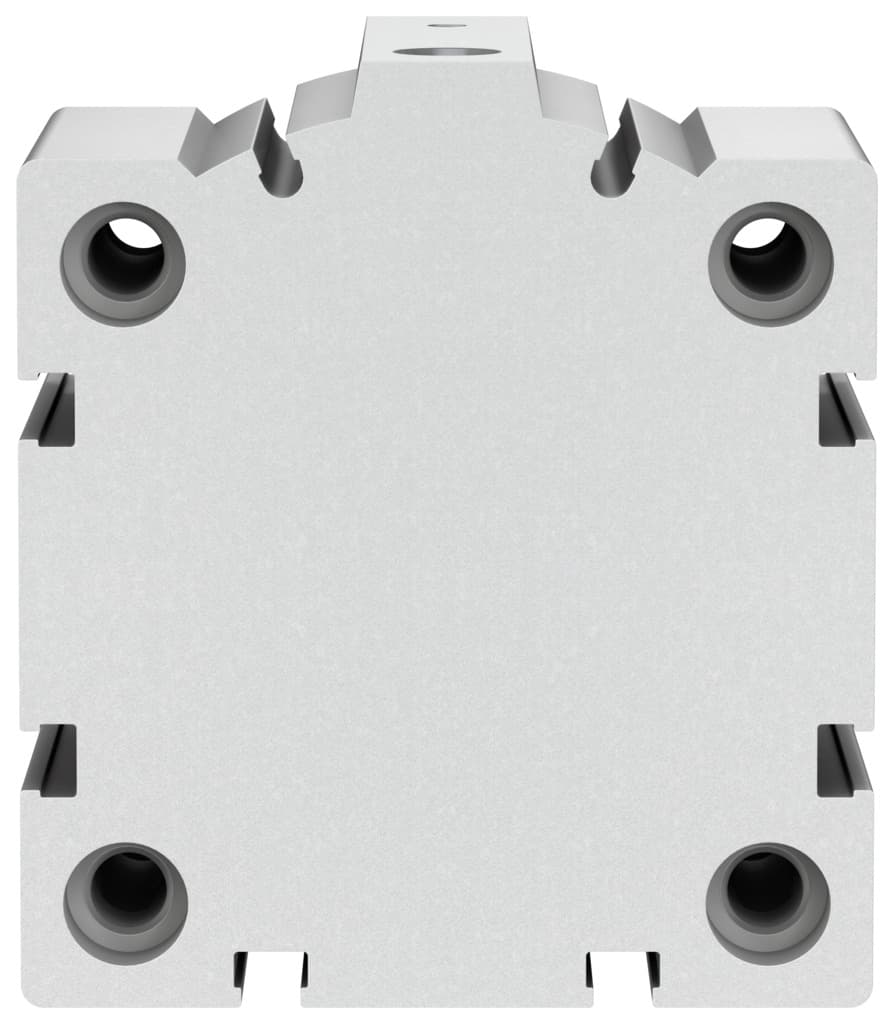

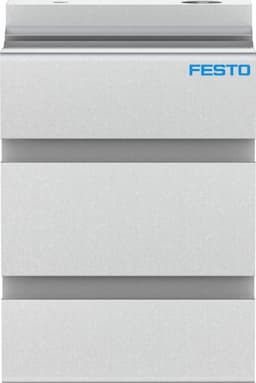

Festo AEVC-63-25-I-P Short-Stroke Cylinder | High-Performance Pneumatic Solution

Selling Points

1High-Performance Pneumatic Solution: Designed for precise applications with compressed air to ISO 8573-1:2010.
2Robust Construction: Made from wrought aluminum alloy with anodized finish and high-alloy steel piston rod.
3Compact Design: Compact dimensions with a stroke of 25mm and piston diameter of 63mm.
4Versatile Mounting Options: Available with through-hole or accessory mounting options.
5Reliable Operation: Spring return force with retracted piston rod at 50N and operating pressure range of 0.1-1 MPa.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	63 mm
Spring resetting force with piston rod in retracted position	50N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	1799N	Moving mass	191g
Product weight	640g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188279

Specifications may be subject to change without notice
