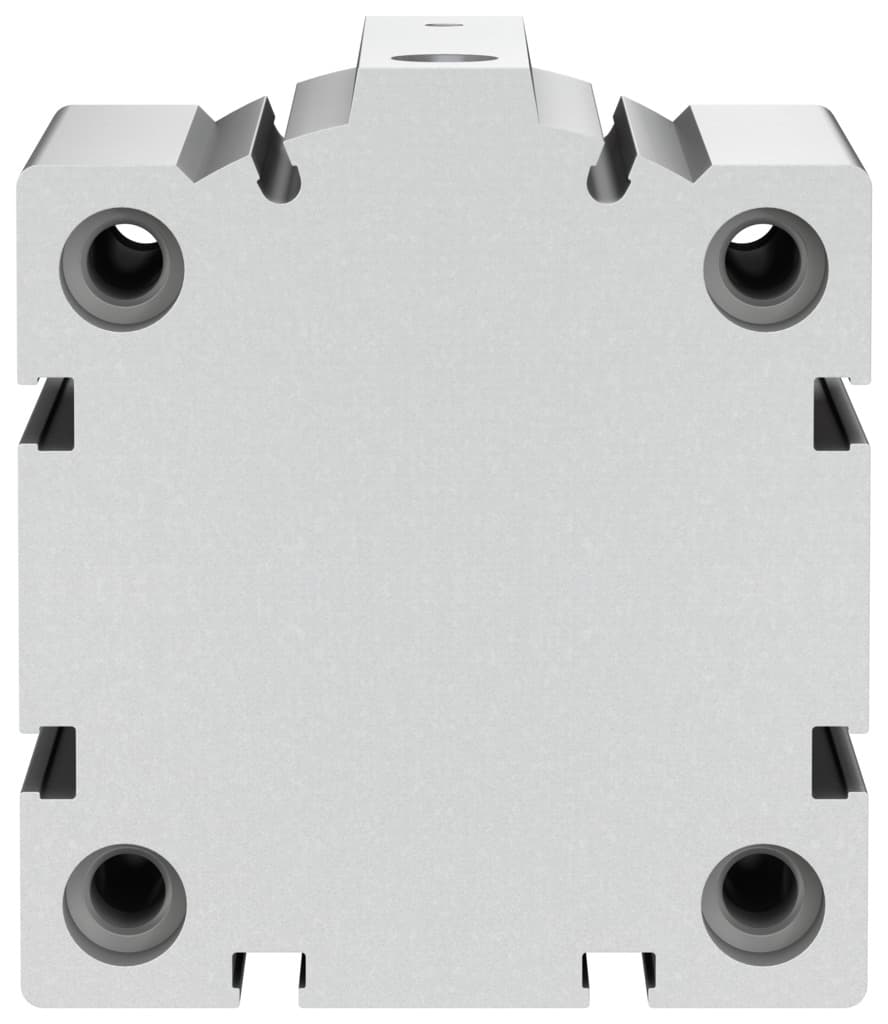

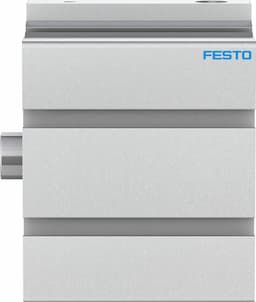

Product Model
aevc-63-25-i-p-a
Selling Points
- 125mm stroke length for precise movements.
- 263mm piston diameter for robust operation.
- 3Spring return force of 50N for reliable action.
- 4Compatible with various mounting positions and pneumatic connections.
- 5Made from wrought aluminum alloy with anodized finish and high-alloy steel piston rod.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 63 mm |
Spring resetting force with piston rod in retracted position | 50N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991729 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 1798N | Moving mass | 179g |
Product weight | 752g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188277 |
Specifications may be subject to change without notice
