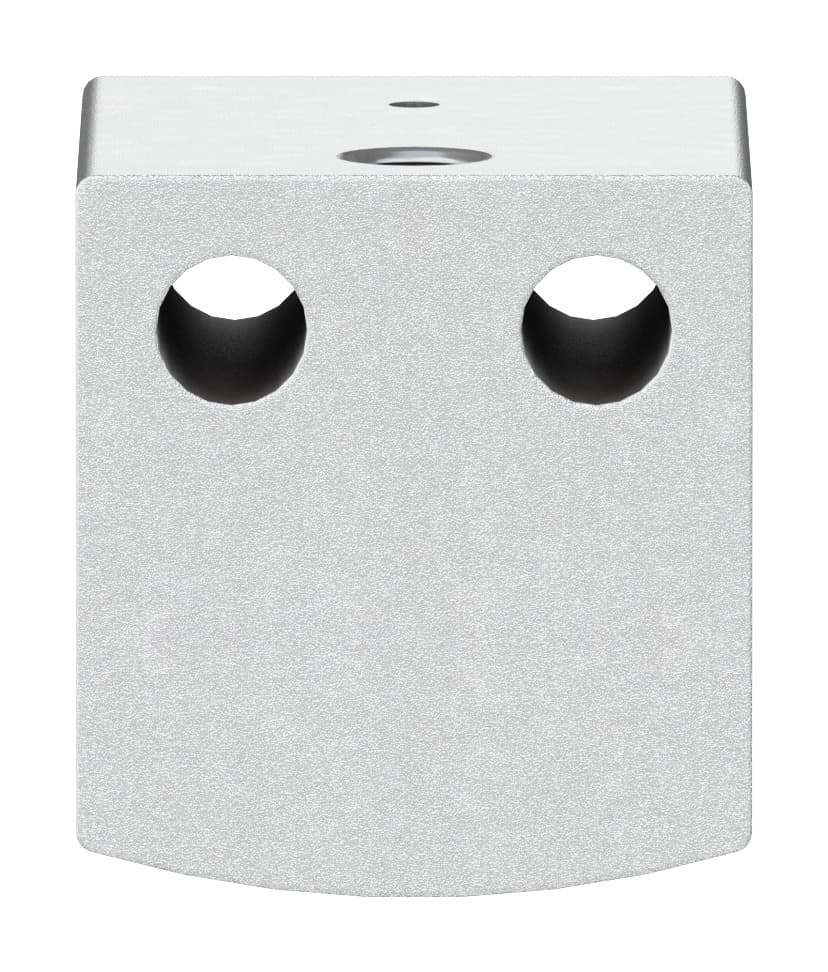

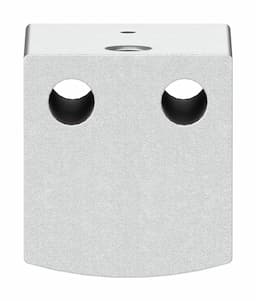

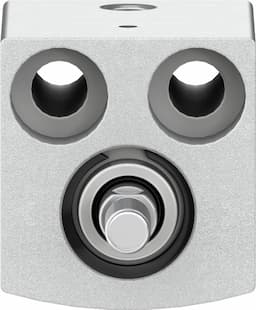

Festo AEVC-6-5-A-P Short Stroke Cylinder - High-Quality Automation Solution

Selling Points

1The Festo AEVC-6-5-A-P short stroke cylinder offers precise operation with a stroke length of 5 mm, ensuring reliable performance in various industrial applications.
2This cylinder can be mounted via through-hole or with accessories, providing flexibility in installation and integration into your automation system.
3With a corrosion resistance class of 1, the AEVC-6-5-A-P is suitable for use in environments with low corrosion stress, ensuring durability and longevity.
4The cylinder operates within a pressure range of 2.5 to 8 bar, making it adaptable to various pneumatic systems and applications.
5Equipped with elastic cushioning rings at both ends, the AEVC-6-5-A-P provides smooth operation and reduces wear and tear on the cylinder components.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	6 mm
Spring resetting force with piston rod in retracted position	3N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991730	Operating pressure	36.25psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	13N
Moving mass	1g	Product weight	7.6g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188062

Specifications may be subject to change without notice
