Product Model

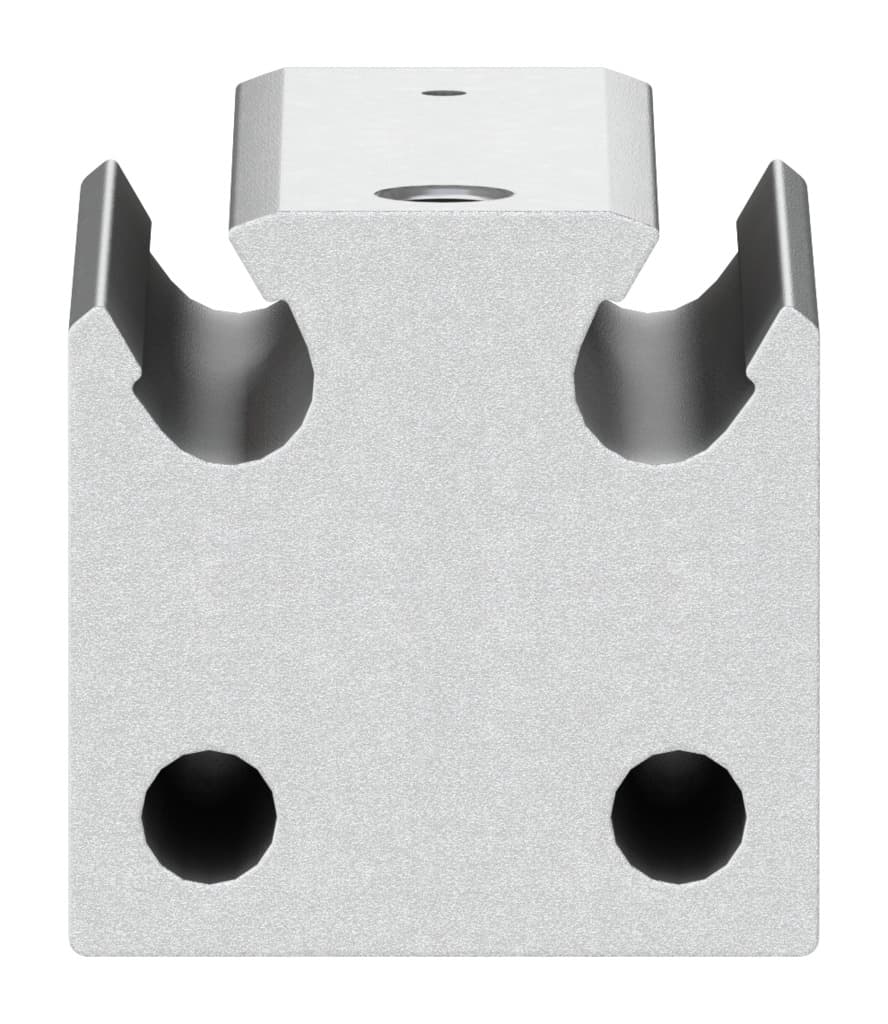

aevc-6-5-a-p-a
Selling Points
- 1The AEVC-6-5-A-P-A offers a compact design, making it ideal for space-constrained automation systems.
- 2Equipped with elastic cushioning rings/plates, this cylinder ensures precise and smooth operation.
- 3Available in optional mounting positions, the AEVC-6-5-A-P-A can be easily integrated into various automation setups.
- 4Designed for double-acting operations, this cylinder provides efficient and reliable performance in both extension and retraction modes.
- 5Built with high-quality materials and engineered for durability, the AEVC-6-5-A-P-A is a reliable choice for demanding industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 6 mm |
Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 36.25psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 11N |
Moving mass | 1.5g | Product weight | 14g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188060 |
Specifications may be subject to change without notice
