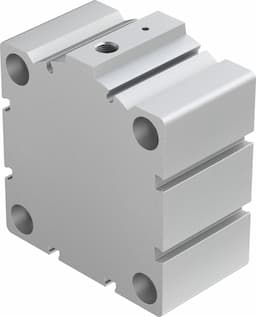

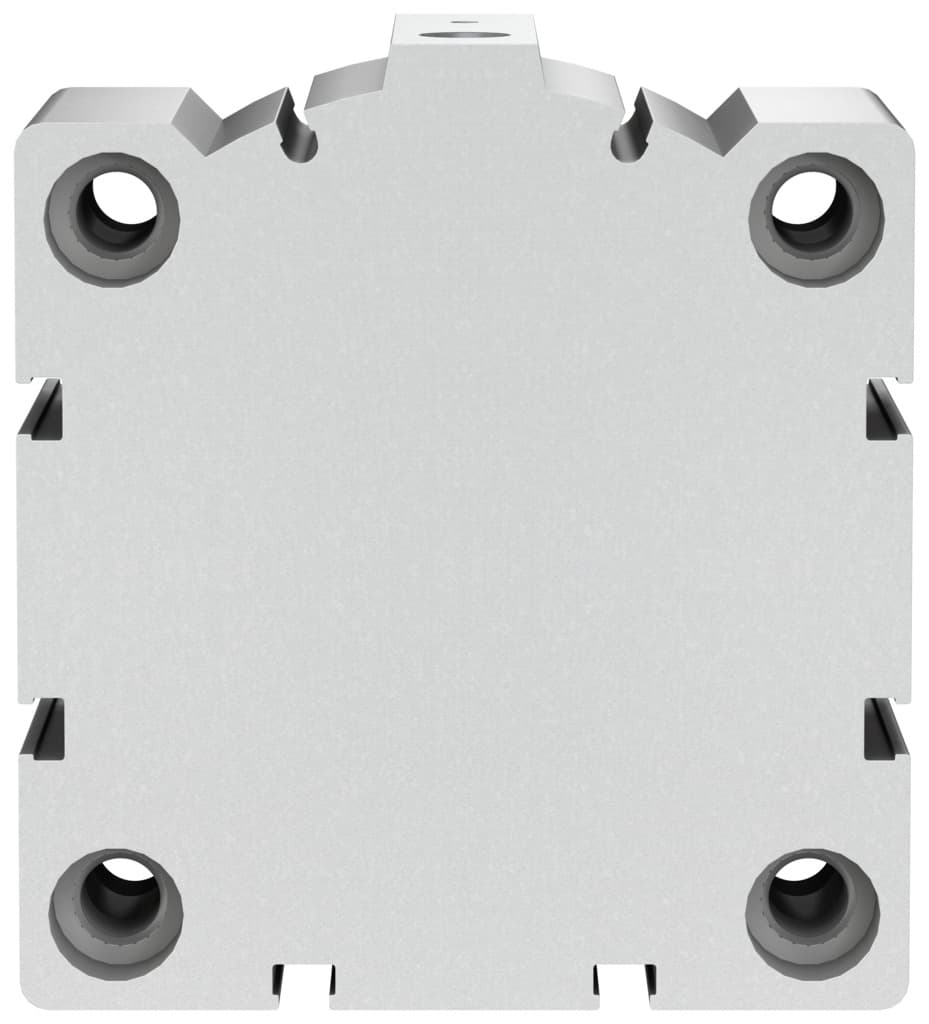

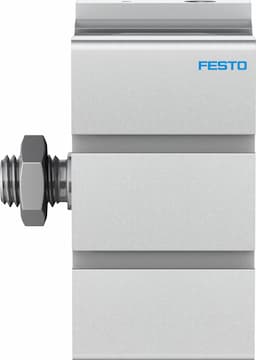

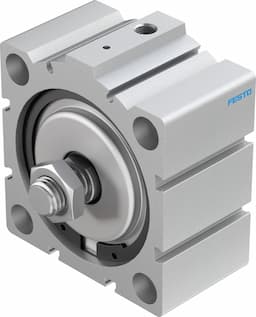

Product Model
aevc-80-10-a-p
Selling Points
- 1High Precision Stroke: 10 mm stroke for precise control in various applications.
- 2Robust Construction: Made from wrought aluminum alloy with anodized finish for durability.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
- 4Wide Operating Pressure Range: Compatible with operating pressures from 1 to 10 bar (14.5 psi to 145 psi).
- 5Low Corrosion Stress: Corrosion resistance class CRC 1 ensures low corrosion stress in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 80 mm |
Spring resetting force with piston rod in retracted position | 85N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991730 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 2901N | Moving mass | 327g |
Product weight | 1150g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188306 |
Specifications may be subject to change without notice
