Product Model

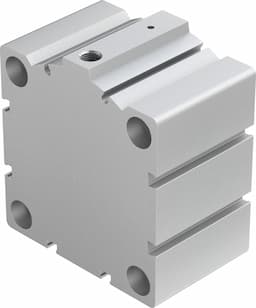

aevc-80-10-a-p-a
Selling Points
- 1Precision Design: 10mm stroke and 80mm piston diameter for precise movements.
- 2Elastic Cushioning: Ensures smooth operation with elastic cushioning rings/pads at both ends.
- 3Low Corrosion Resistance: CRC 1 - Low corrosion stress, suitable for various environments.
- 4Pneumatic Connection: Compatible with G1/8 pneumatic connection for easy integration.
- 5Robust Materials: Made from wrought aluminum alloy (anodized) and high-alloy steel for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 80 mm |
Spring resetting force with piston rod in retracted position | 85N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991729 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, advancing | 2899N | Moving mass | 284g |
Product weight | 1210g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188304 |
Specifications may be subject to change without notice
