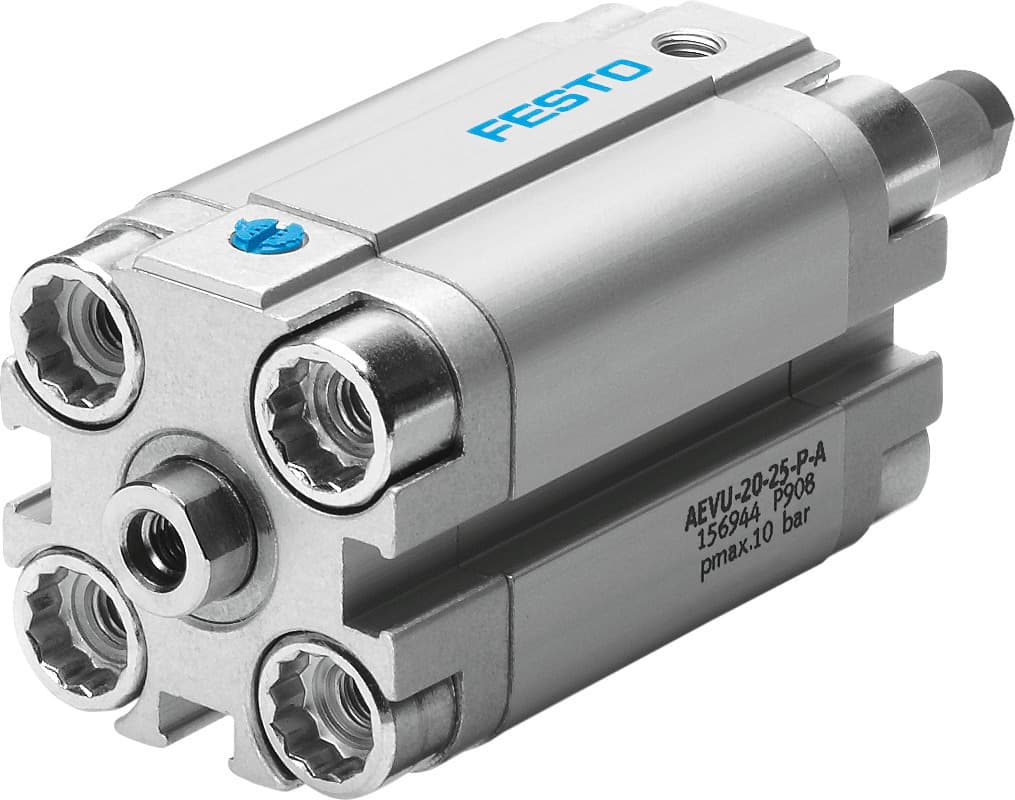

Festo AEVU-16 Series Pneumatic Cylinders - High Precision & Efficiency

Selling Points

1The Festo AEVU-16 series offers precise control and efficient operation, making it suitable for a wide range of industrial applications.
2Equipped with elastic cushioning rings/plates at both ends, these cylinders provide smooth operation and reduced wear.
3These compact pneumatic cylinders are designed to fit into tight spaces, making them ideal for applications where space is limited.
4The AEVU-16 series allows for optional mounting positions, offering flexibility in installation and integration.
5Available with built-in position sensing via proximity switches, these cylinders ensure accurate positioning and control.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	1mm 25mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Single-acting	Piston rod end	Internal thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991202	Variants	Through piston rod
Operating pressure	18.85psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.1J	Theoretical force at 6 bar, advancing	81N
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Flange screws material	High-alloy stainless steel	Cover material	Wrought aluminum alloy
Material of dynamic seals	NBR TPE-U(PU)	Piston rod material	High-alloy stainless steel
Material of cylinder barrel	Wrought aluminum alloy	Manufacturer ID	156231

Specifications may be subject to change without notice
