Product Model
aevulq-25- -p-a-s2
Selling Points

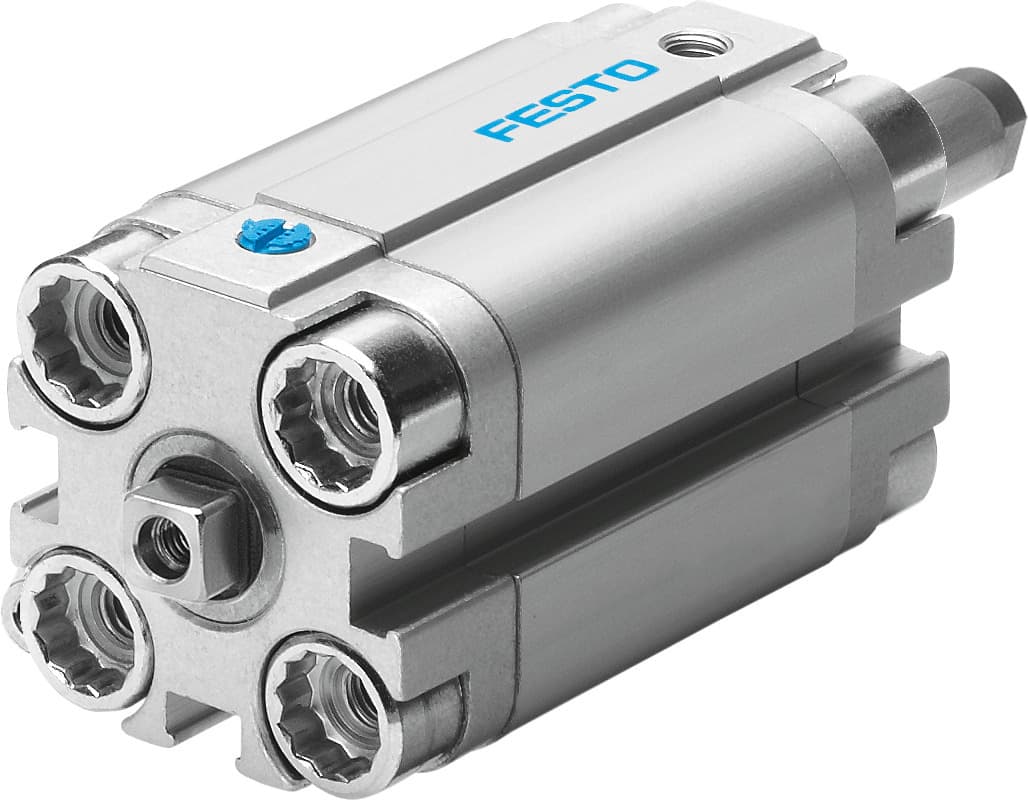

- 1The Festo AEVULQ-25-10-P-A pneumatic cylinder is designed for precise automation applications, ensuring reliable and consistent performance in various industrial settings.
- 2Equipped with a square piston rod, this cylinder offers anti-rotation/torsion protection, preventing damage and ensuring smooth operation.
- 3Integrated with proximity sensors, the AEVULQ-25-10-P-A provides real-time position sensing, enhancing control and accuracy in automated systems.
- 4The round cylindrical shape of the AEVULQ-25-10-P-A makes it a compact and space-efficient solution for various industrial applications.
- 5Operating at +10bar, this pneumatic cylinder is suitable for demanding applications requiring high pressure and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991202 | Variants | Through piston rod |
Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1J |
Theoretical force at 6 bar, advancing | 221N | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | M5 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156333 |
Specifications may be subject to change without notice
