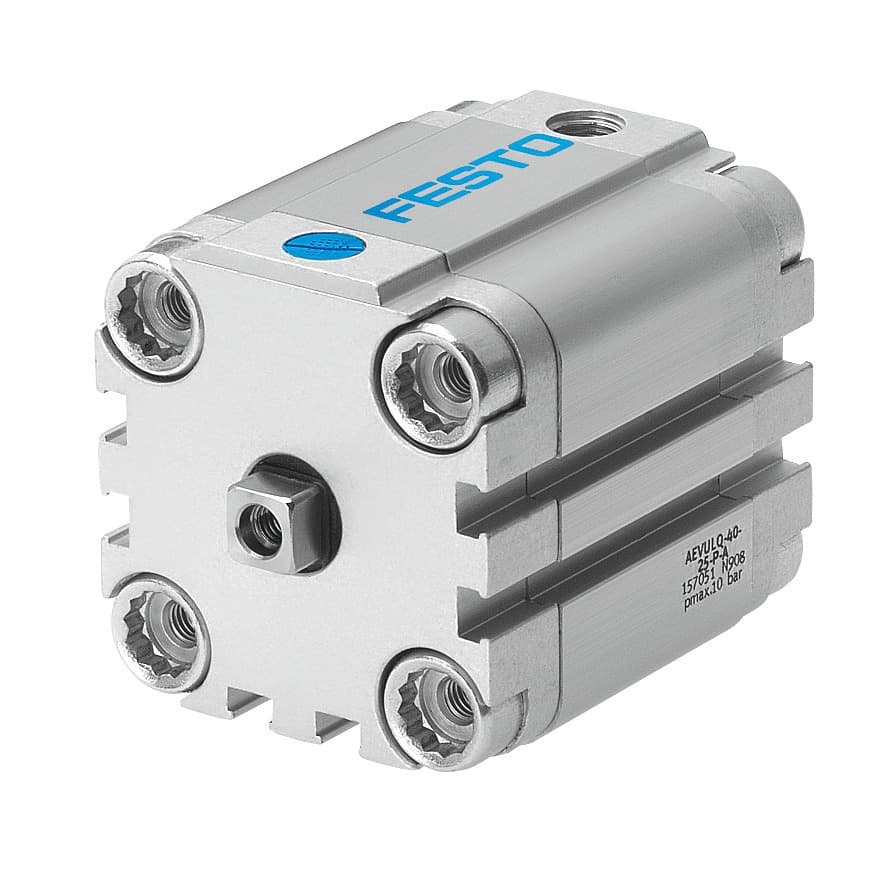

Product Model
aevulq-80- -p-a

Selling Points
- 1High-Quality Components - Festo offers a wide variety of high-quality pneumatic, electric, and control components designed to meet the demands of industrial automation. These components are engineered to provide reliability and efficiency in various applications.
- 2Versatile Gripping Technology - Festo's grippers and gripping technology cater to a wide range of handling applications. Available in both pneumatic and electric options, these grippers offer long strokes and customizable jaw designs for precise handling.
- 3Efficient Air Preparation - Festo's air preparation units ensure the correct compressed air quality by filtering out oil, condensate, and dirt particles. These units are configurable for various applications, including ISO 8573-1:2010 standards.
- 4Integrated Solutions - Festo provides everything from a single source, including pneumatic components, electric drive technology, and hybrid systems. This holistic approach simplifies procurement processes and ensures seamless integration into factory automation systems.
- 5Quality Assurance - Festo is committed to quality, with a globally established quality management system and relevant certifications. This commitment ensures customer satisfaction by providing reliable products and efficient processes from consultation to shipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 80 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.75J |
Theoretical force at 6 bar, advancing | 2902N | Moving mass at 0?mm stroke | 307g |
Additional moving mass per 10?mm stroke | 25g | Basic weight with 0?mm stroke | 1772g |
Additional weight per 10?mm stroke | 168g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156328 |
Specifications may be subject to change without notice
