Product Model

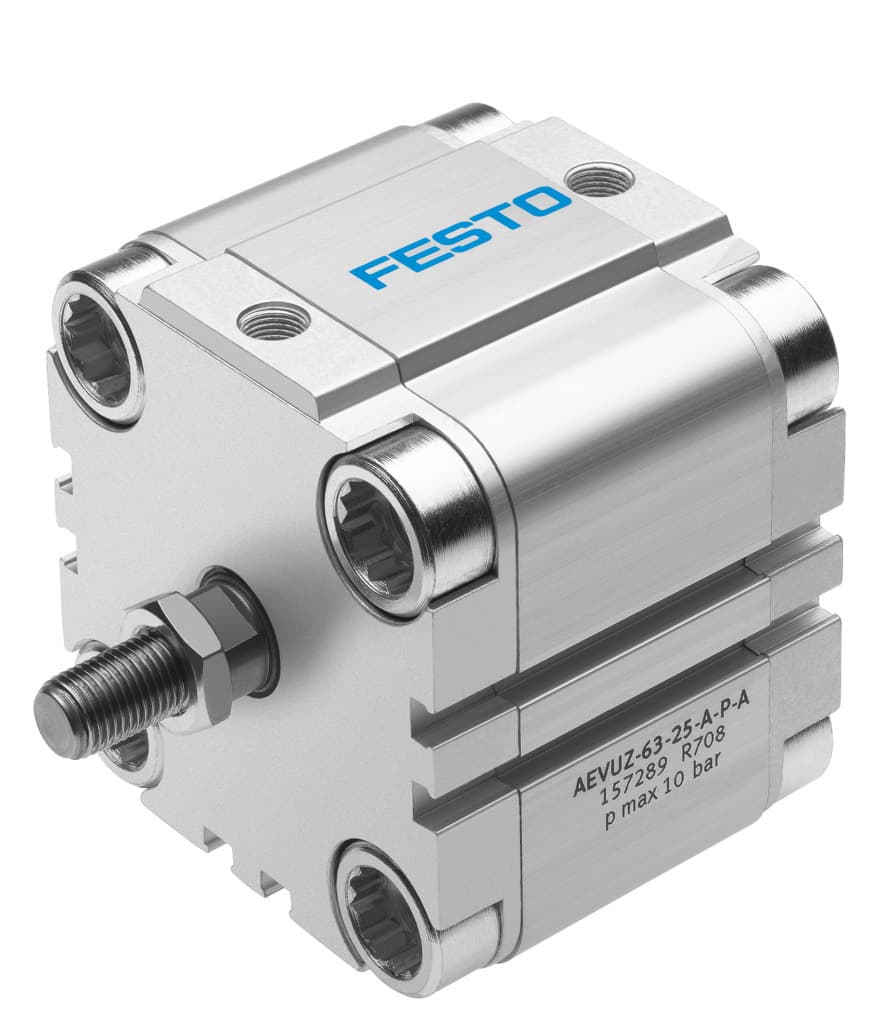

aevuz-100-15-a-p-a
Selling Points
- 1The AEVUZ-100-15-A-P-A features a compact design with a stroke range of 1 mm to 25 mm, making it ideal for space-constrained applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The cylinder offers optional mounting positions, allowing for flexible installation in various applications.
- 4With an operating pressure range of 0.08 MPa to 1 MPa (0.8 bar to 10 bar), the AEVUZ-100-15-A-P-A is suitable for demanding pneumatic tasks.
- 5Built with a moderate corrosion resistance class (CRC 2), this cylinder is designed to withstand indoor applications with potential condensation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 100 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991204 | Variants | Piston rod at one end |
Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1J | Theoretical force at 6 bar, advancing | 4222N |
Moving mass at 0?mm stroke | 614g | Additional moving mass per 10?mm stroke | 38g |
Basic weight with 0?mm stroke | 2797g | Additional weight per 10?mm stroke | 177g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/4 |
Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 157295 |
Specifications may be subject to change without notice
