Product Model
aevuz-16- -a-p-a
Selling Points

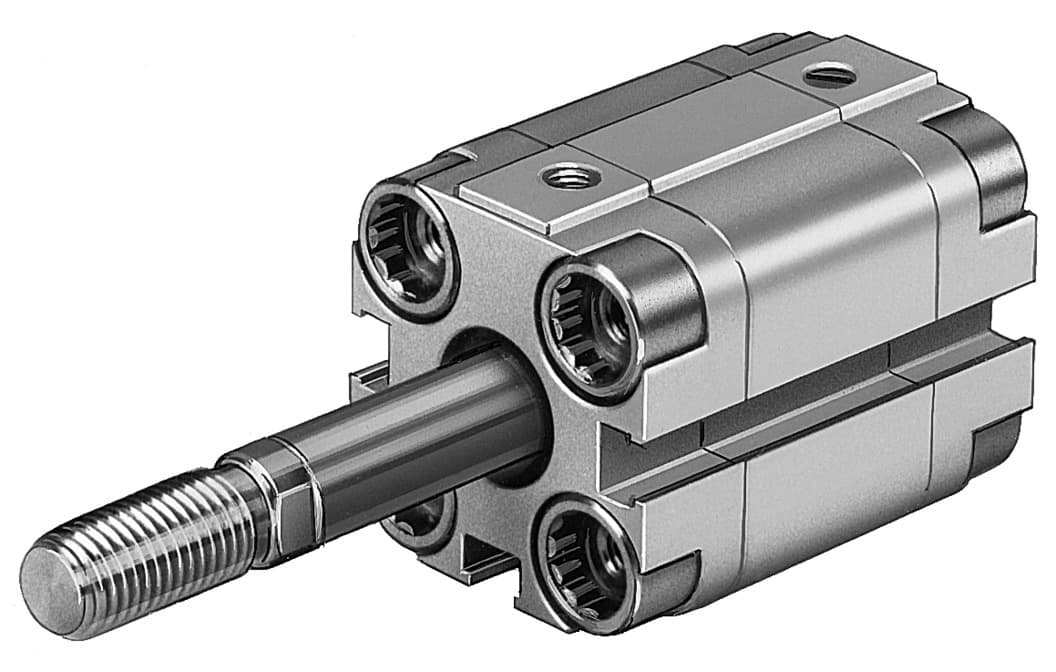

- 1The Festo AEVUZ-16-20-P-A features a compact design with a piston diameter of 16 mm, making it perfect for space-constrained applications in industrial automation and precision engineering.
- 2This cylinder operates single-acting, pulling the piston rod end, which simplifies the setup and reduces complexity in your system.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the moving parts.
- 4The AEVUZ-16-20-P-A can operate under pressures up to 10 bar (1.3 MPa), making it suitable for demanding industrial applications.
- 5Available with optional through-hole or accessory mounting options, this cylinder offers flexibility in terms of installation and integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991204 | Variants | Piston rod at one end |
Operating pressure | 18.85psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, advancing | 81N |
Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 89g | Additional weight per 10?mm stroke | 15g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156481 |
