Product Model
aevuz-16- -p-a-s6
Selling Points

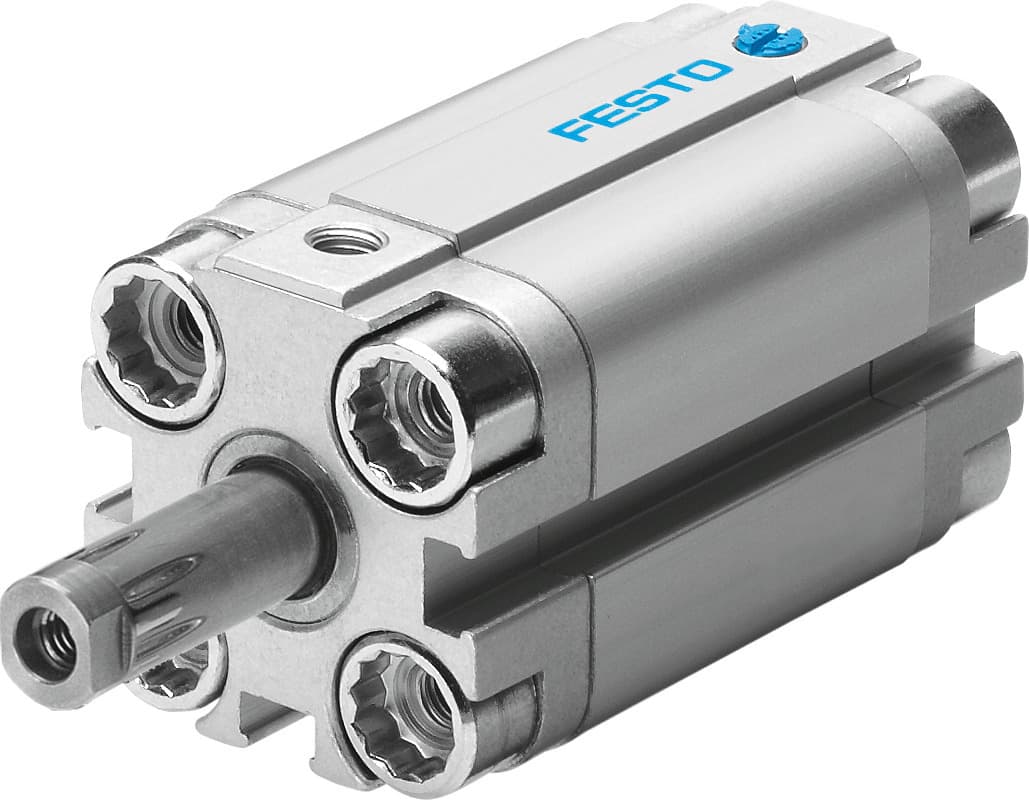

- 1The AEVUZ-16-20-P-A is designed to minimize installation space, making it perfect for applications where space is limited.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder reduces noise and vibration, ensuring smooth operation.
- 3This pneumatic cylinder operates single-acting, pulling the piston rod with spring-extend functionality, simplifying control mechanisms.
- 4Made from high-alloy stainless steel, the piston rod and flange screws provide excellent durability and resistance to corrosion.
- 5Available in various stroke lengths and bore sizes, the AEVUZ series offers a wide range of variants for customized applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991204 | Variants | Heat-resistant seals max. 120°C |
Operating pressure | 18.85psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, advancing | 81N |
Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 89g | Additional weight per 10?mm stroke | 15g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
Material of dynamic seals | FPM | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156471 |
Specifications may be subject to change without notice
