Product Model
aevuz-80- -p-a-s6
Selling Points

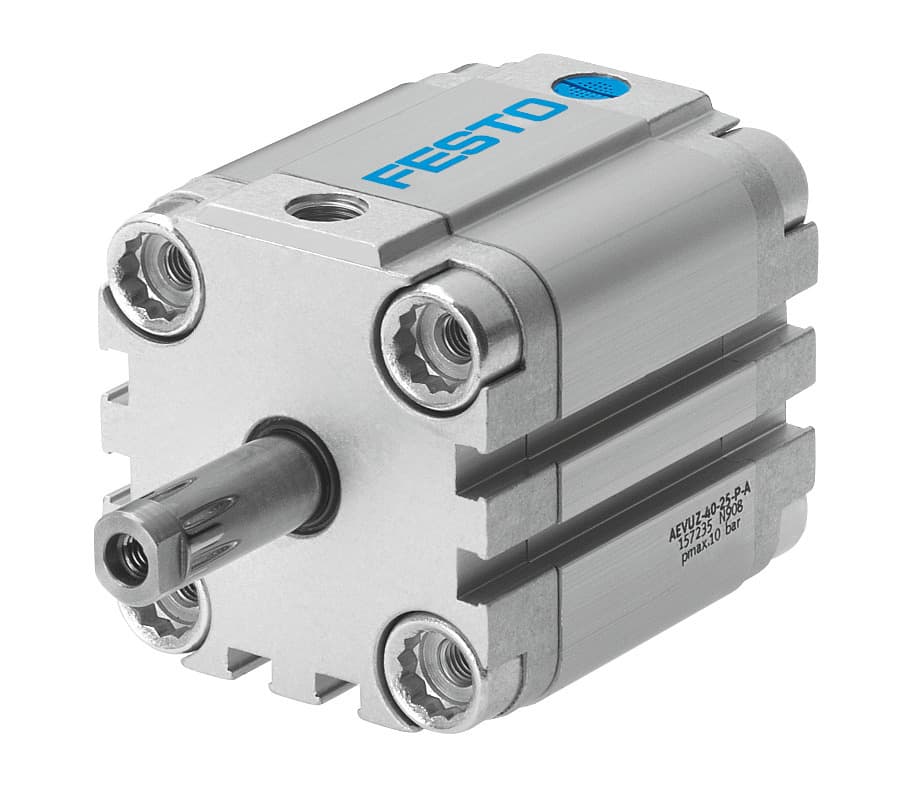

- 1The Festo AEVUZ-80-P-A pneumatic cylinder boasts high-alloy steel piston rods, ensuring excellent running performance and long service life.
- 2Equipped with flexible cushioning rings/plates at both ends, this cylinder provides adjustable elastic cushioning to absorb energy and reduce noise and vibration.
- 3Ideal for a wide range of applications, the AEVUZ-80-P-A offers compact dimensions and a variety of stroke lengths, making it versatile for different industrial needs.
- 4Designed for single-action retraction, this cylinder is perfect for applications requiring precise control and efficient operation.
- 5The AEVUZ series conforms to ISO 8573-1:2010 standards, ensuring reliable operation in compressed air environments and meeting stringent quality control measures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 80 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991204 | Variants | Heat-resistant seals max. 120°C |
Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
Impact energy in the end positions | 0.75J | Theoretical force at 6 bar, advancing | 2733N |
Moving mass at 0?mm stroke | 307g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1772g | Additional weight per 10?mm stroke | 168g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
Material of dynamic seals | FPM | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156478 |
Specifications may be subject to change without notice
