Product Model
amte-m-h-g12
Selling Points

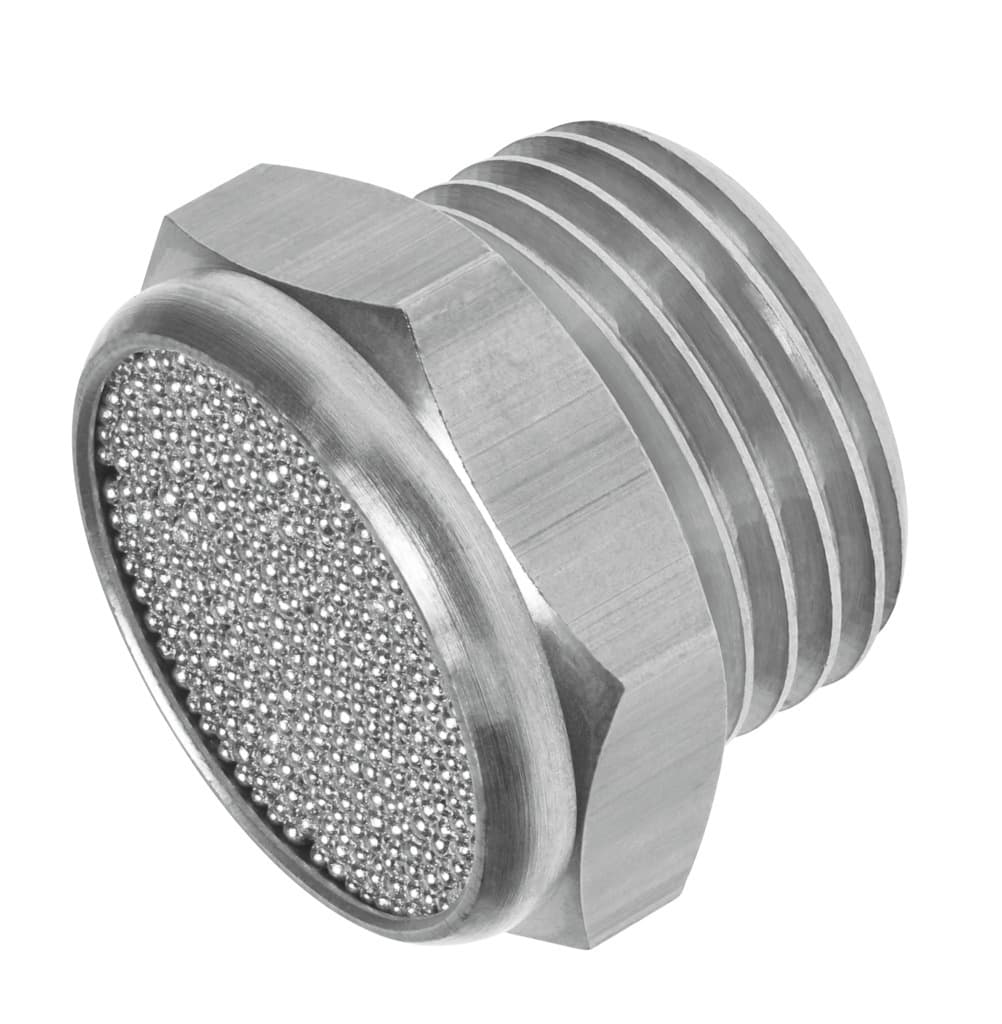

- 1The Festo AMTE-M-H-G12 pneumatic silencer effectively reduces noise levels to 92 dB(A), making it an ideal solution for noise-sensitive environments.
- 2Constructed with a brass body and bronze silencer insert, this silencer offers high corrosion resistance and durability, ensuring long-lasting performance.
- 3Designed to operate within a pressure range of 0 to 10 bar, the AMTE-M-H-G12 is versatile and suitable for various pneumatic system applications.
- 4With a flow rate of 2745 liters per minute, this silencer efficiently handles high airflow requirements, making it suitable for demanding pneumatic systems.
- 5The AMTE-M-H-G12 is compliant with ATEX zones 1, 2, 21, and 22, ensuring safe operation in hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pack size | 10 |
Symbol | 00991473 | Operating pressure | 0bar 10bar |
Flow rate with respect to atmosphere | 2745l/min | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Noise level | 92dB(A) | Ambient temperature | -40°C 80°C |
Product weight | 30g | Pneumatic connection | G1/2 |
Cushioning insert material | Bronze | Material of screwed plug | Brass |
Note on materials | RoHS-compliant | Manufacturer ID | 1206625 |
Specifications may be subject to change without notice
