Product Model
amte-m-lh-n12
Selling Points

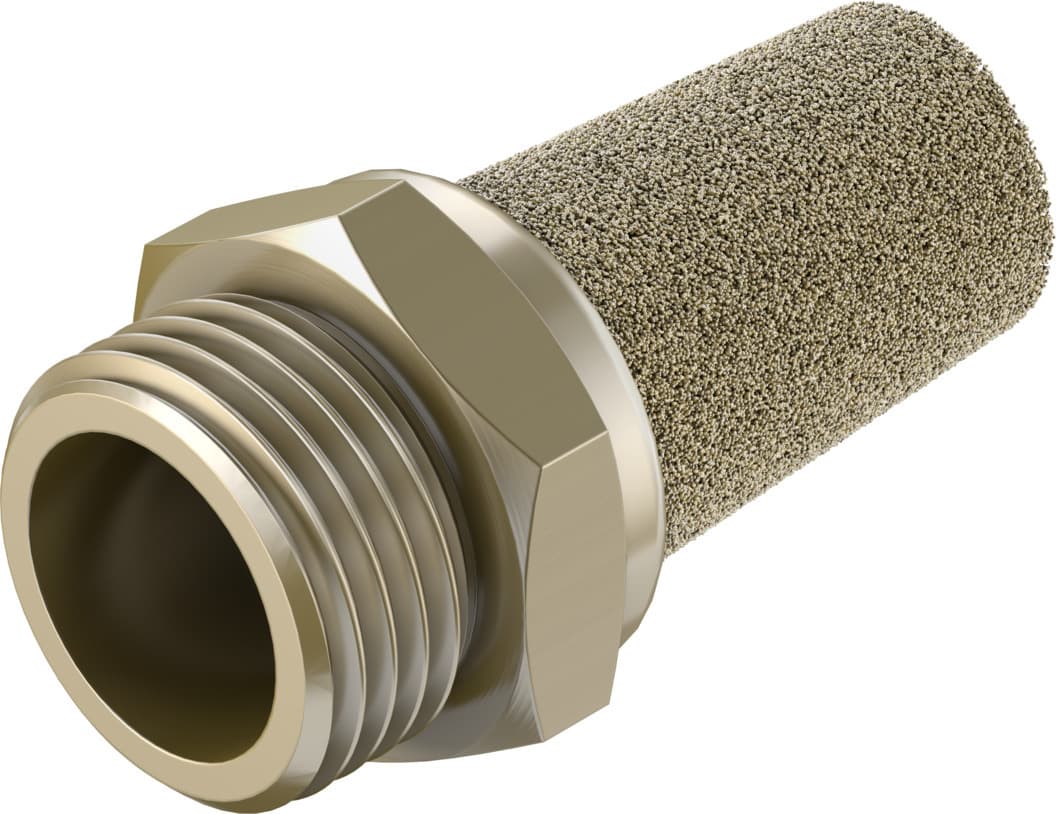

- 1The Festo AMTE-M-LH-N12 is a long-design pneumatic silencer with a bronze silencer insert, ensuring effective noise reduction in pneumatic systems.
- 2This silencer features a 1/2 NPT male thread, making it compatible with a wide range of pneumatic connections.
- 3With an operating pressure of 0 to 10 bar, the AMTE-M-LH-N12 is suitable for various pneumatic applications, including those requiring high pressure.
- 4The product is designed to reduce noise levels to 85 dB(A), providing a quieter working environment.
- 5Available in increments of 10, the AMTE-M-LH-N12 ensures efficient packaging and easy installation in your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pack size | 10 |
Symbol | 00991473 | Operating pressure | 0bar 10bar |
Flow rate with respect to atmosphere | 9240l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 85dB(A) |
Ambient temperature | -40°C 80°C | Product weight | 46g |
Pneumatic connection | 1/2 NPT | Cushioning insert material | Bronze |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Manufacturer ID | 1206992 |
Specifications may be subject to change without notice
