Product Model
amte-m-lh-n14
Selling Points

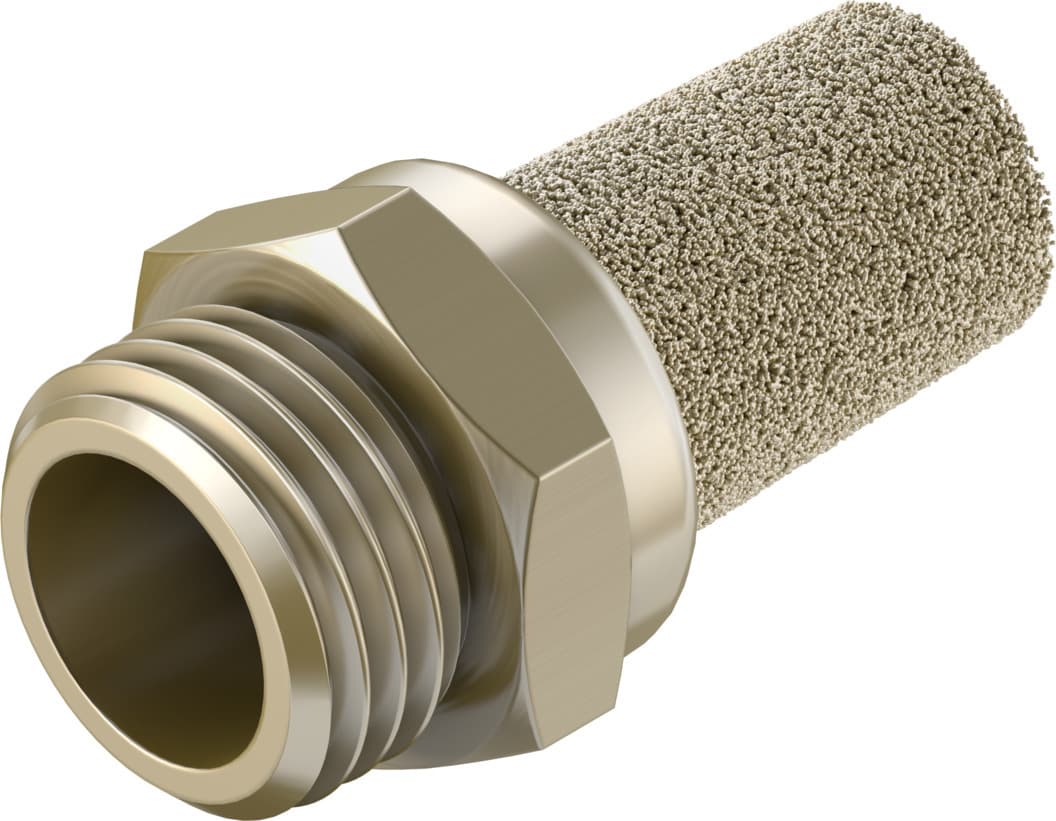

- 1The Festo AMTE-M-LH-N14 pneumatic silencer effectively reduces noise levels to 82 dB(A), ensuring a quieter working environment.
- 2With a flow rate of 3080 l/min, this silencer is suitable for high-volume pneumatic systems, making it ideal for various industrial applications.
- 3Made from brass and bronze materials, the AMTE-M-LH-N14 is built to last, offering low corrosion stress and durability in harsh environments.
- 4The 1/4 NPT connection allows for easy integration into various pneumatic systems, providing flexibility in installation and maintenance.
- 5The silencer operates with compressed air as per ISO 8573-1:2010, ensuring compliance with international standards for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pack size | 20 |
Symbol | 00991473 | Operating pressure | 0bar 10bar |
Flow rate with respect to atmosphere | 3080l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 82dB(A) |
Ambient temperature | -40°C 80°C | Product weight | 17g |
Pneumatic connection | 1/4 NPT | Cushioning insert material | Bronze |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Manufacturer ID | 1206990 |
Specifications may be subject to change without notice
