Product Model
ck-1/2-pk-8
Selling Points

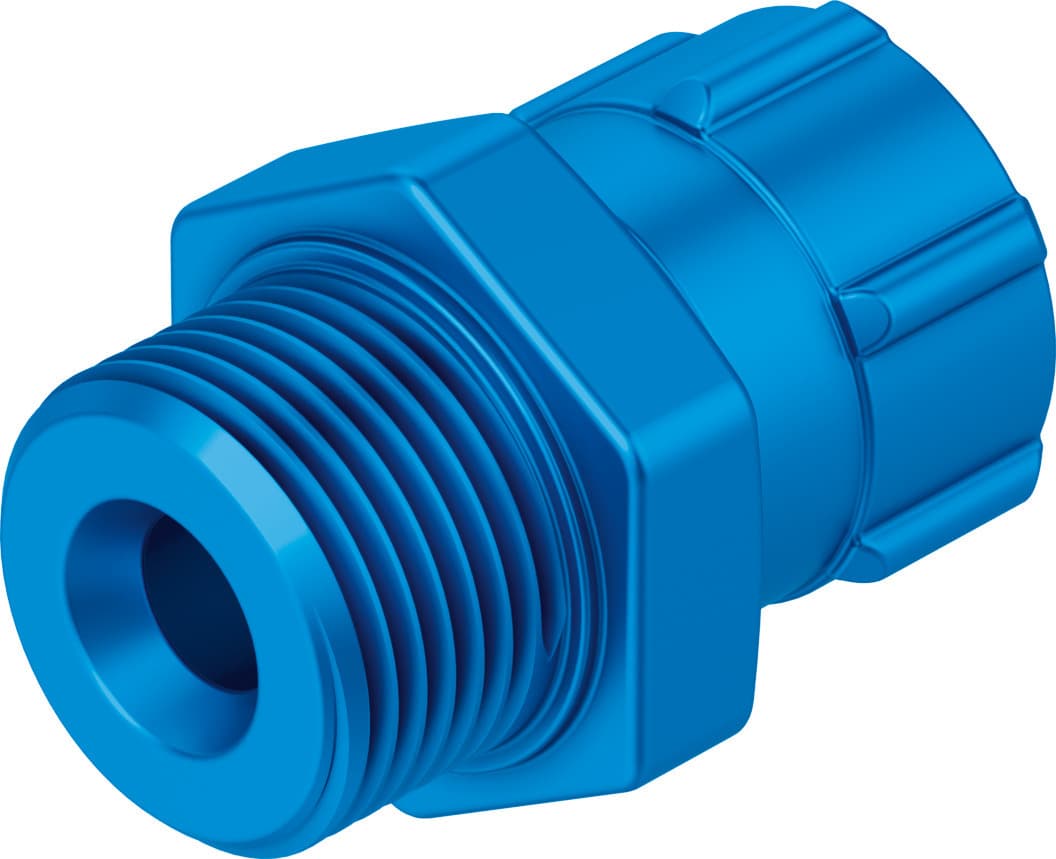

- 1The Festo CK-1/2-PK-8 quick connector offers a nominal size of 7.2 mm, ensuring precise and reliable connections in various pneumatic systems.
- 2This quick connector features a sealing ring on the screwed plug, providing excellent sealing performance and durability in both compressed air and water applications.
- 3The CK-1/2-PK-8 supports optional mounting positions, allowing for flexible installation in different setups and environments.
- 4With an operating pressure range of -0.095 to 1 MPa, this connector is suitable for a wide range of pneumatic applications, including those requiring high pressure.
- 5The connector is designed with a straight design and is made from high-quality materials such as anodized wrought aluminum alloy for the union nut and screwed plug, ensuring corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 7.2mm | Type of seal on screwed plug | Sealing ring |
Mounting position | Any | Design | Straight design |
Pack size | 300 | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Nominal tightening torque | 14Nm | Tolerance for nominal tightening torque | ± 20% |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for barbed connector I.D. 8 mm with nut |
Material of union nut | Wrought aluminum alloy, anodized | Material of screwed plug | Anodized wrought aluminum alloy |
Note on materials | RoHS-compliant | Sealing ring material | Reinforced PA TPE-U(PU) |
Manufacturer ID | 151657 |
Specifications may be subject to change without notice
