Product Model

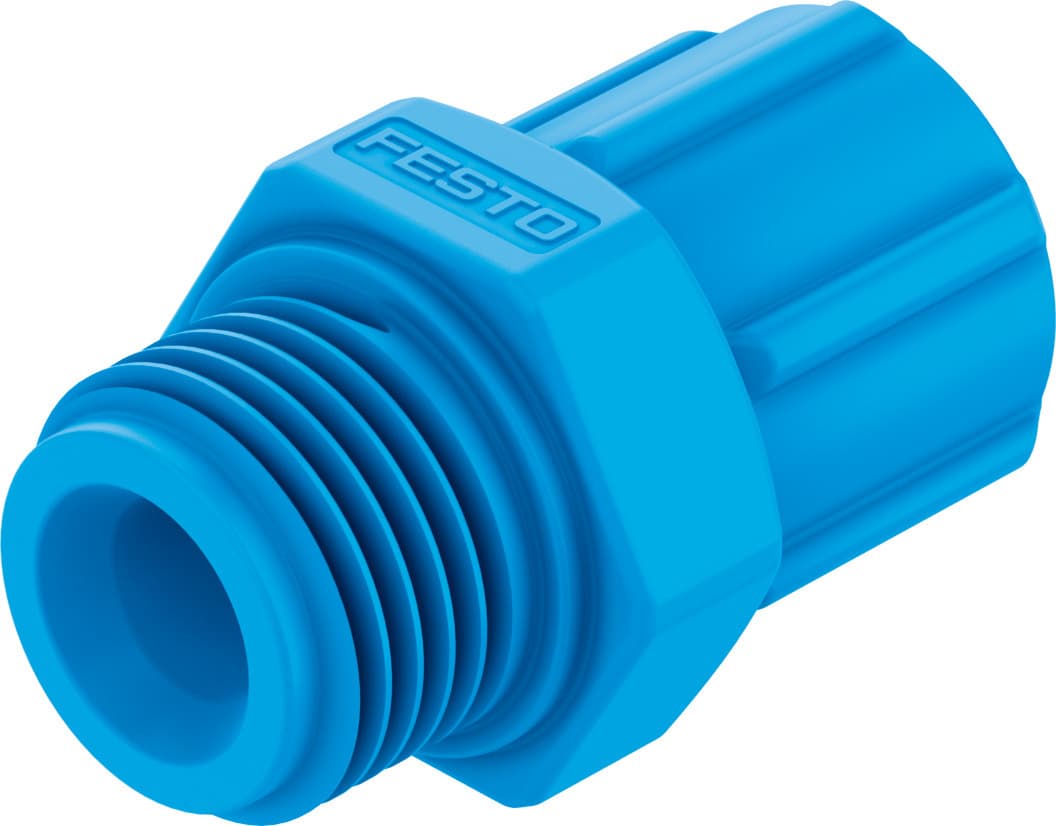

ck-1/4-pk-9-ku
Selling Points
- 1Robust Construction: Built with POM material, ensuring durability and resistance to corrosion.
- 2Versatile Installation: Can be mounted in any position, offering flexibility in setup.
- 3Seal Edge Design: Provides a secure seal on the screwed plug for leak-free operation.
- 4Wide Operating Range: Compatible with compressed air to ISO 8573-1:2010 and water up to 0.6 MPa at 50°C.
- 5Efficient Operation: Lubricated operation possible, enhancing performance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 7.3mm | Type of seal on screwed plug | Sealing edge |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Nominal tightening torque | 5.5Nm |
Tolerance for nominal tightening torque | ± 20% | Pneumatic connection 1 | External thread G1/4 |
Pneumatic connection 2 | for barbed fitting, inside diameter 9 mm, with nut | Material of union nut | POM |
Material of screwed plug | POM | Note on materials | RoHS-compliant |
Manufacturer ID | 6258 |
Specifications may be subject to change without notice
