Product Model
ck-m5-pk-3
Selling Points

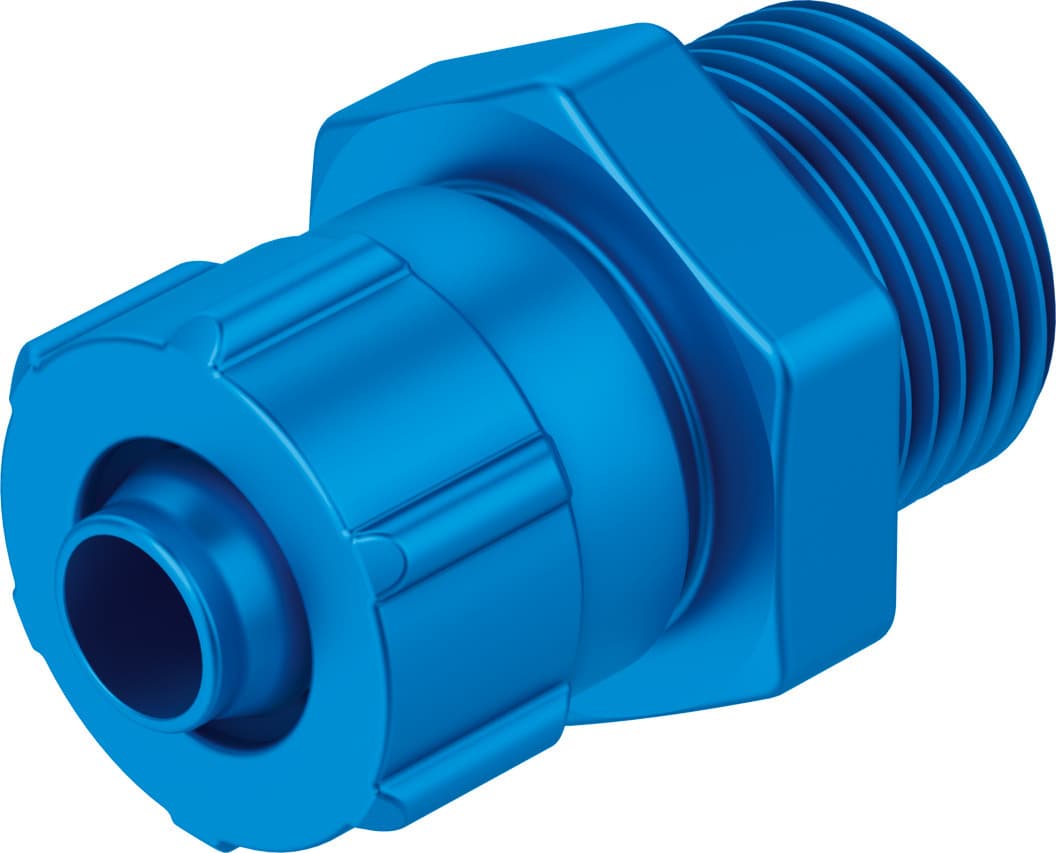

- 1The Festo CK-M5-PK-3 quick connector ensures secure and efficient pneumatic connections, ideal for compressed air and water applications.
- 2With a straight design and optional mounting position, this connector is versatile and easy to integrate into various pneumatic systems.
- 3Constructed from wrought aluminum alloy with an anodized finish, the CK-M5-PK-3 offers durability and resistance to corrosion.
- 4This quick connector operates within a broad temperature range of -10°C to 60°C, making it suitable for diverse industrial applications.
- 5Featuring a sealing ring and male thread M5, the CK-M5-PK-3 is simple to install and maintain, ensuring minimal downtime in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2mm | Type of seal on screwed plug | Sealing ring |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Nominal tightening torque | 1.33Nm | Tolerance for nominal tightening torque | ± 20% |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm for barbed fitting, inside diameter 3 mm, with nut |
Material of union nut | Wrought aluminum alloy, anodized | Material of screwed plug | Steel, galvanized |
Note on materials | RoHS-compliant | Sealing ring material | NBR High-alloy stainless steel |
Manufacturer ID | 3561 |
