Product Model

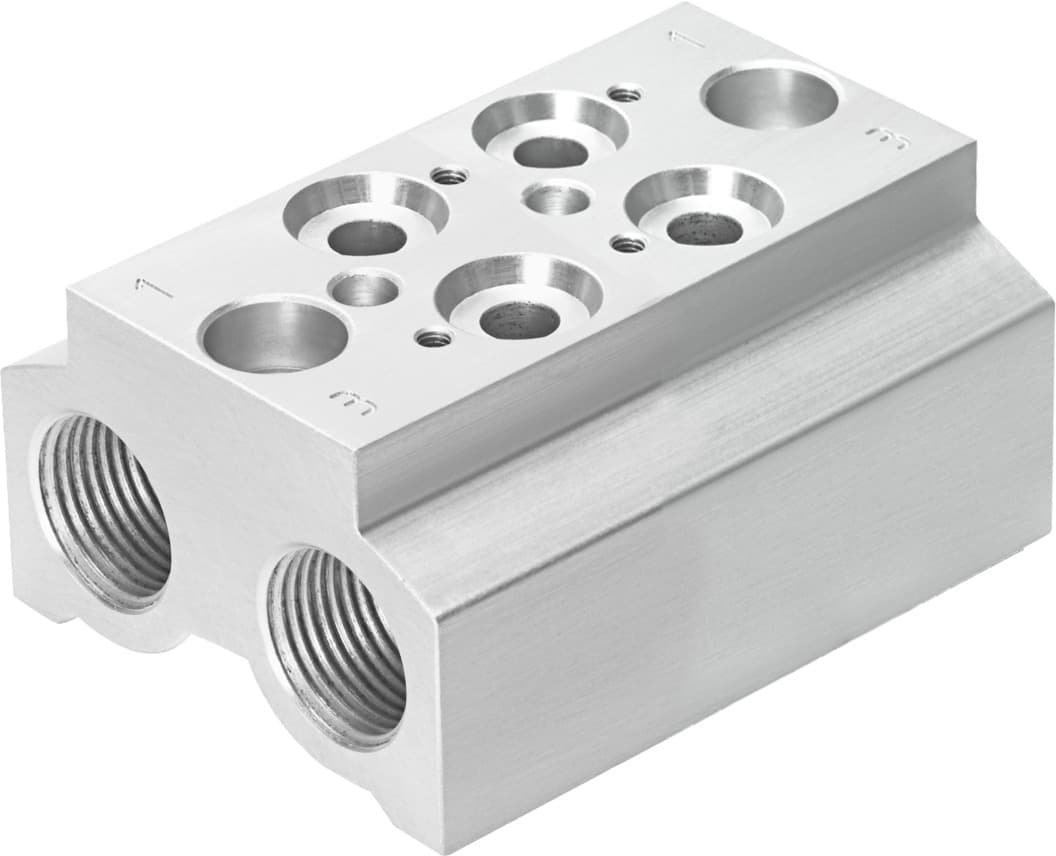

cpe10-3/2-prs-1/4-2-npt
Selling Points
- 1The Festo CPE10-3/2-PRS-1/4-2-NPT is a versatile pneumatic connector block suitable for various industrial automation applications, including computer software, flexible manufacturing systems, and robotics.
- 2This connector block features a grid dimension of 16 mm, allowing for precise and efficient valve positioning. It supports up to 2 valve positions and 2 pressure zones.
- 3The CPE10-3/2-PRS-1/4-2-NPT operates within a working pressure range of -13 to 145 Psi, making it reliable in a variety of pneumatic systems.
- 4Constructed from wrought aluminum alloy, this connector block conforms to RoHS standards, ensuring environmental sustainability and compliance.
- 5The CPE10-3/2-PRS-1/4-2-NPT is designed for easy mounting with an internal (female) thread and supports NPT1/4-18 connections, providing a secure and efficient pneumatic connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 2 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 127.008g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550601 |
Specifications may be subject to change without notice
