Product Model
cpe10-3/2-prs-1/4-6
Selling Points

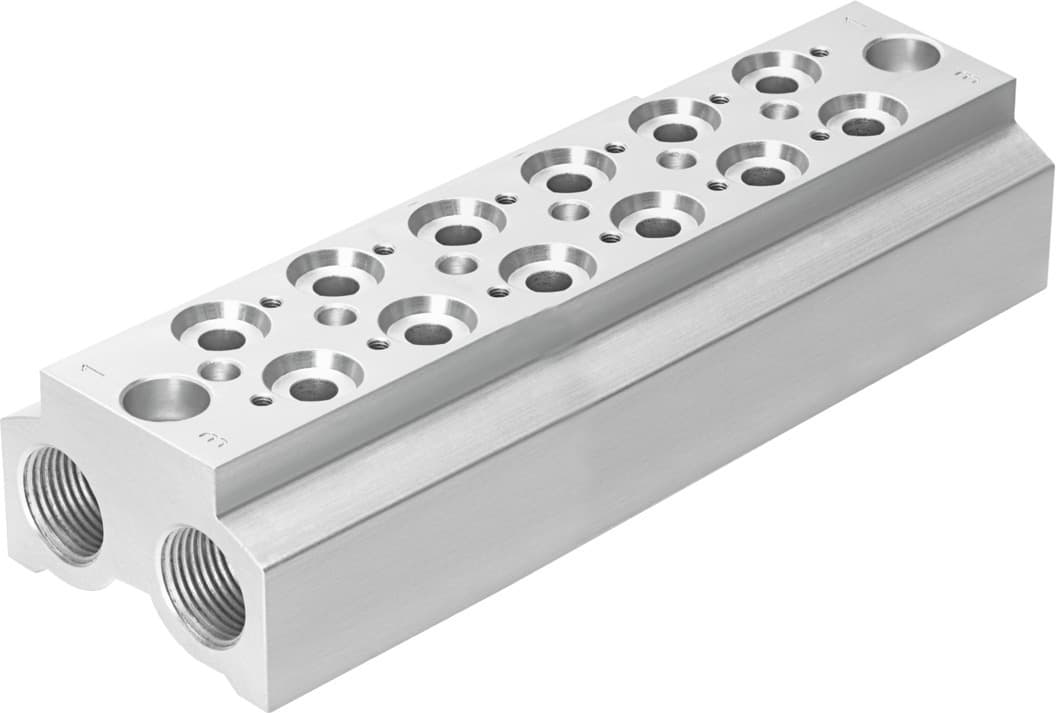

- 1The Festo CPE10-3/2-PRS-1/4-6 manifold block offers 6 valve positions, making it versatile for various industrial automation applications.
- 2This product features 2 pressure zones, ensuring efficient control and management of pneumatic systems.
- 3With a burst pressure of 5 MPa (50 bar or 725 psi), the CPE10-3/2-PRS-1/4-6 manifold block is designed to withstand high-pressure conditions.
- 4The manifold block is made from wrought aluminum alloy, ensuring corrosion resistance and durability.
- 5The product is RoHS-compliant, meeting environmental regulations and standards for sustainable manufacturing practices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 6 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.2Nm | Product weight | 274g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550554 |
Specifications may be subject to change without notice
